Image similar

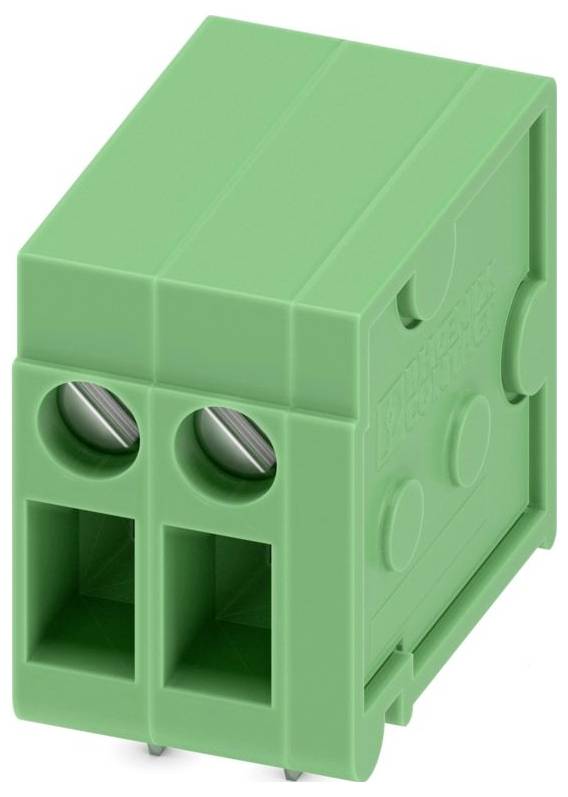

Phoenix Contact 1724657 PCB terminal 2.5 mm² Number of pins 2 Green 20 pc(s)
Product type
PCB terminal
CS
5 mm
Pins per row
2
Number of pins
2
Connection
Screw terminal
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
- Content 20 pc(s)
Technical specifications
- Type
FRONT 2,5-H/SA10/ 2
- Product type
PCB terminal
- Features
Stackable
- CS
5 mm
- No. of rows
1
- Pins per row
2
- Number of pins
2
- Series
FRONT
- Connection
Screw terminal
- Nominal current
24 A
- Cross section (flexible) (min.)
0.2 mm²
- Nominal current - rounded value
24 A
- Cross section (inflexible) (min.)
0.2 mm²
- Cross section (flexible) (max.)
2.5 mm²
- Cross section (inflexible) (max.)
2.5 mm²
- Connector orientation
Parallel (to the PCB)
- Contact material
Tin
- Factory colour
Green
- Manufacturer part #
1724657
- Content
20 pc(s)
- Height
23.5 mm
- Case colour
Green
- UKCA
yes
