Phoenix Contact 1724977 Print terminal 1.5 mm² Number of pins 7 Green 50 pc(s) Piece
Packaging type
Piece
Product type
Print terminal
CS
3.5 mm
Pins per row
7
Number of pins
7
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
PCB terminal
- Content 50 pc(s)
Technical specifications
- Mounting type: Wave soldering
- Number of connections: 14
- Metal surface solder area (cover layer): Tin (4 - 8 µm Sn)
- Insulating material: PA
- Insulating material group: I

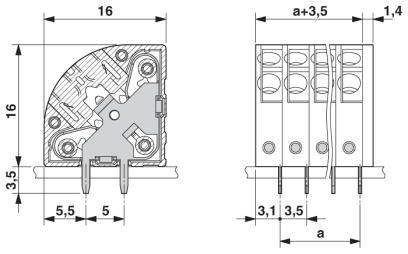

- Overall height (height without solder pin): 16 mm
- Pin length 3.5 mm
- Pin dimensions 1 x 0.4 mm
- Rated surge voltage (III/3) 2.5 kV
- Nominal cross-section 1.5 mm²
- Packaging type
Piece
- Type
PTDA 1,5/ 7-3,5
- Product type
Print terminal
- Features
+ push-in spring bracket
- CS
3.5 mm
- No. of rows
1
- Pins per row
7
- Number of pins
7
- Series
PTDA
- Stripping length (max.)
10 mm
- Connection
Push-in connector
Print
- Nominal current
13.5 A
- Cross section (flexible) (min.)
0.2 mm²
- Nominal current - rounded value
13.5 A
- Cross section (inflexible) (min.)
0.2 mm²
- Cross section (flexible) (max.)
1.5 mm²
- Cross section (inflexible) (max.)
1.5 mm²
- AWG (min.)
24
- AWG max.
16
- Contact material
Cu-alloy, tin plated
- Enclosure material
Polyamide
- Factory colour
Green
- Manufacturer part #
1724977
- Content
50 pc(s)
- Nominal voltage
240 V
- Width
25.9 mm
- Height
19.5 mm
- Length
16 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2141012 Phoenix Contact 1724977 Print terminal 1.5 mm² Number of pins 7 Green 50 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 2141012 Phoenix Contact 1724977 Print terminal 1.5 mm² Number of pins 7 Green 50 pc(s) Piece
Description
Tool-free, time-saving push-in connection. Defined contact force ensures long-term stable contact. Simple looping of potentials - ideal for BUS applications. Quick and convenient testing through integrated testing possibility. Rounded design for individual device design. Double solder pins reduce the mechanical stress on the solder joints.
