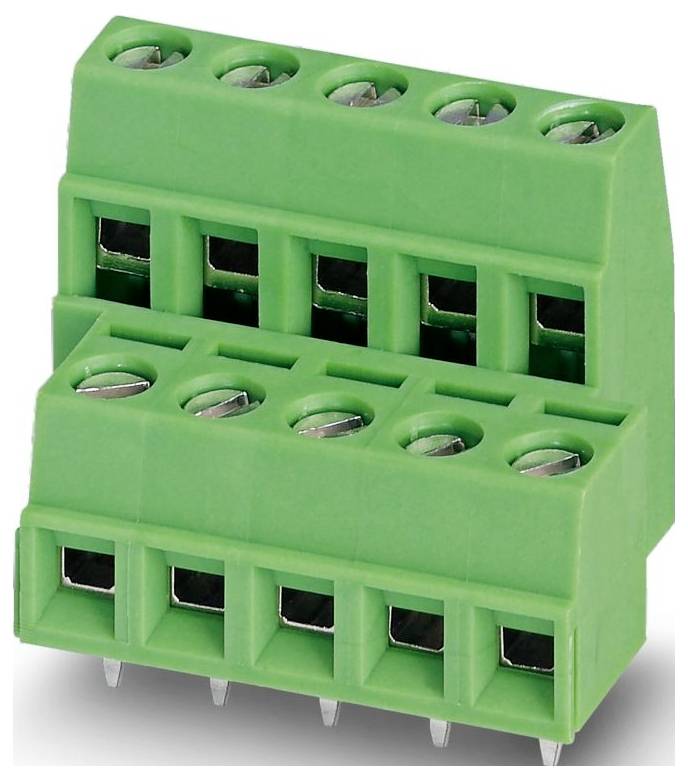

Phoenix Contact 1726176 PCB terminal 1.5 mm² Number of pins 5 Green 50 pc(s)
Product type
PCB terminal
CS
5.08 mm
Pins per row
5
Number of pins
5
Connector orientation
Parallel (to the PCB)
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
- Content 50 pc(s)
Technical specifications
- Type
MKKDSN 1,5/ 5-5,08
- Product type
PCB terminal
- Features
+ extractor sleeve
- CS
5.08 mm
- No. of rows
2
- Pins per row
5
- Number of pins
5
- Series
MKKDSN
- Nominal current
13.5 A
- Cross section (flexible) (min.)
0.14 mm²
- Nominal current - rounded value
13.5 A
- Cross section (inflexible) (min.)
0.14 mm²
- Cross section (flexible) (max.)
1.5 mm²
- Cross section (inflexible) (max.)
1.5 mm²
- Connector orientation
Parallel (to the PCB)
- Contact material
Tin
- Factory colour
Green
- Wire protection
Yes
- Manufacturer part #
1726176
- Content
50 pc(s)
- Height
22.6 mm
- Case colour
Green
- UKCA
yes
