Image similar

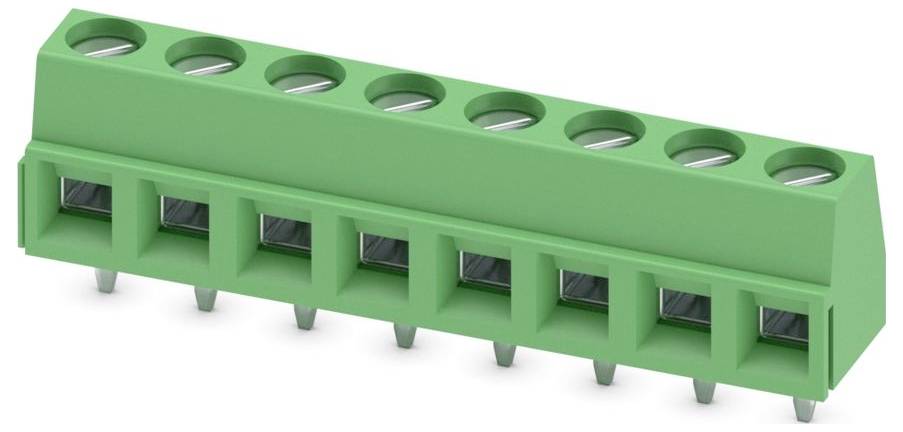

Phoenix Contact 1729076 PCB terminal 1.5 mm² Number of pins 8 Green 60 pc(s)
Product type
PCB terminal
CS
5 mm
Pins per row
8
Number of pins
8
Type
MKDSN 1,5/ 8
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Type
MKDSN 1,5/ 8
- Product type
PCB terminal
- Features
+ extractor sleeve
- CS
5 mm
- No. of rows
1
- Pins per row
8
- Number of pins
8
- Series
MKDSN
- Nominal current
17.5 A
- Cross section (flexible) (min.)
0.14 mm²
- Nominal current - rounded value
17.5 A
- Cross section (inflexible) (min.)
0.14 mm²
- Cross section (flexible) (max.)
1.5 mm²
- Cross section (inflexible) (max.)
1.5 mm²
- Contact material
Tin
- Factory colour
Green
- Wire protection
Yes
- Manufacturer part #
1729076
- Content
60 pc(s)
- Height
13.47 mm
- Length
3.5 mm
- Case colour
Green
- UKCA
yes
