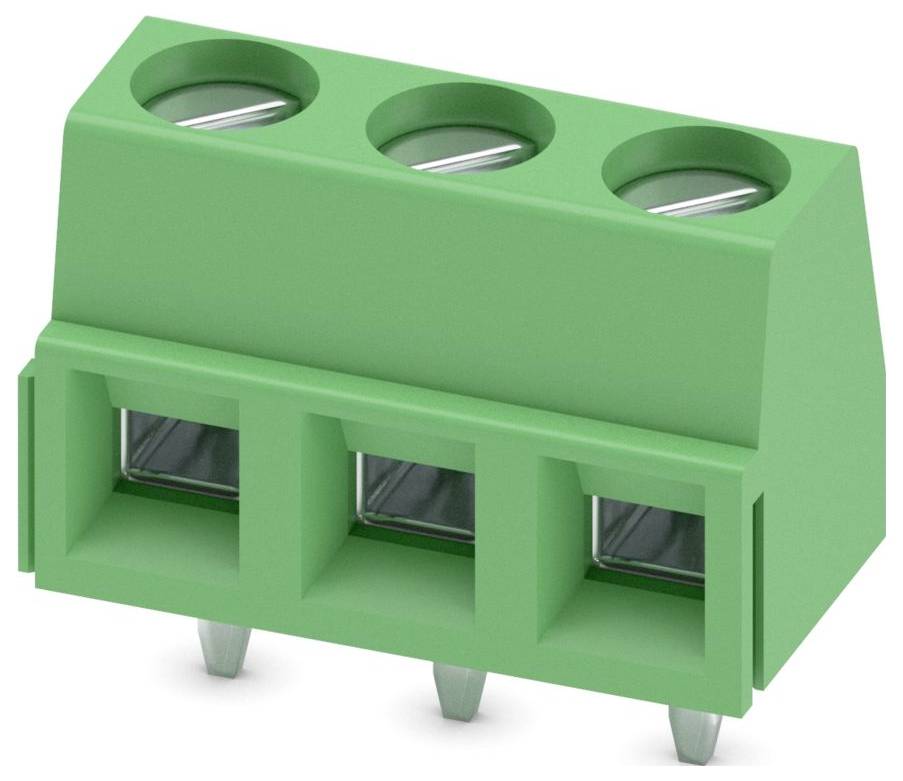

Phoenix Contact 1729131 PCB terminal 1.5 mm² Number of pins 3 Green 180 pc(s)
Product type
PCB terminal
CS
5.08 mm
Pins per row
3
Number of pins
3
Connector orientation
Parallel (to the PCB)
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
- Content 180 pc(s)
Technical specifications
- Type
MKDSN 1,5/ 3-5,08
- Product type
PCB terminal
- CS
5.08 mm
- No. of rows
1
- Pins per row
3
- Number of pins
3
- Series
MKDSN
- Nominal current
17.5 A
- Cross section (flexible) (min.)
0.14 mm²
- Nominal current - rounded value
17.5 A
- Cross section (inflexible) (min.)
0.14 mm²
- Cross section (flexible) (max.)
1.5 mm²
- Cross section (inflexible) (max.)
1.5 mm²
- Connector orientation
Parallel (to the PCB)
- Contact material
Tin
- Factory colour
Green
- Wire protection
Yes
- Manufacturer part #
1729131
- Content
180 pc(s)
- Height
13.5 mm
- Case colour
Green
- UKCA
yes
