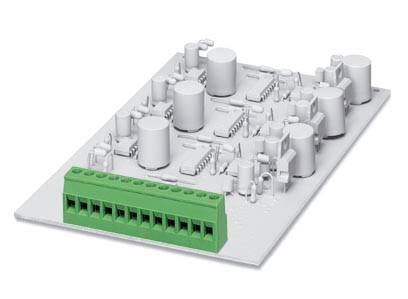

Image similar
Phoenix Contact 1730450 Screw terminal 2.50 mm² Number of pins 8 50 pc(s)
Product type
Screw terminal
CS
5.08 mm
Pins per row
8
Number of pins
8
Connection
Print
Soldering
EAN:
Part number:
Item no:
Highlights & Details
Pcb CONNECTION TERM 1730450 50 PCS
- Content 50 pc(s)
Technical specifications
- Type
MKDS 2,5/ 8-5,08
- Product type
Screw terminal
- Features
+ extractor sleeve
- CS
5.08 mm
- Pins per row
8
- Number of pins
8
- Series
MKDS
- Stripping length (max.)
8 mm
- Connection
Print
Soldering
- Nominal current
24 A
- Cross section (flexible) (min.)
0.14 mm²
- Nominal current - rounded value
24 A
- Cross section (inflexible) (min.)
0.14 mm²
- Cross section (flexible) (max.)
2.50 mm²
- Cross section (inflexible) (max.)
2.50 mm²
- Contact material
Tin
- Enclosure material
PA
- Manufacturer part #
1730450
- Content
50 pc(s)
- Nominal voltage
400 V
- Width
41.82 mm
- Height
21.70 mm
- Length
11.60 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1828606 Phoenix Contact 1730450 Screw terminal 2.50 mm² Number of pins 8 50 pc(s)
Description
Well-known connection principle allows use worldwide. Low heat generation through high contact force. Allows the connection of two conductors. Integrated exam on protection prevents an incorrect plugging of the conductor below the pull-out sleeve.
