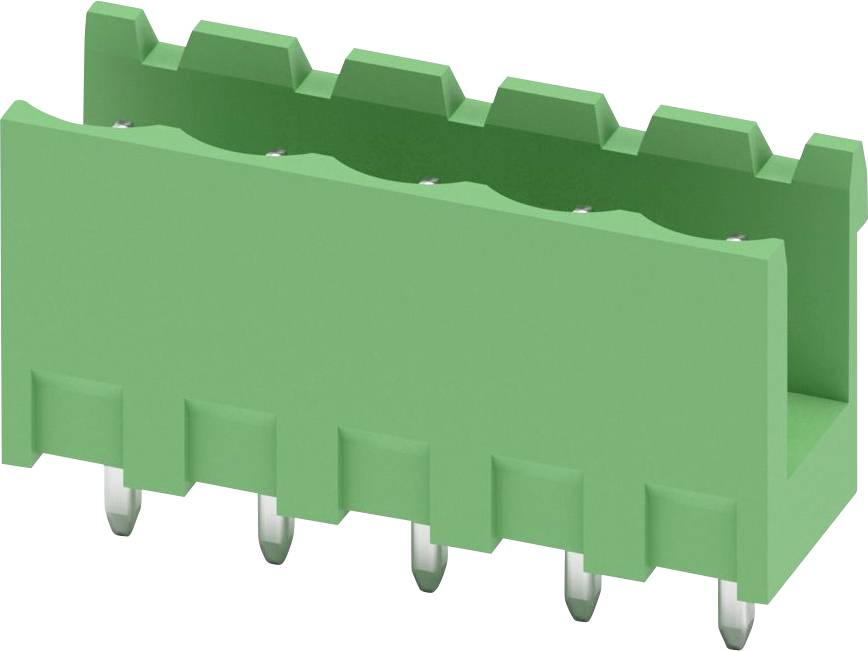

Phoenix Contact 1753495 PCB connector Total number of pins 5 No. of rows 1 250 pc(s)
Product type
PCB connector
Total no. of pins
5
CS
5 mm
Content
250 pc(s)
No. of rows
1
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
PCB terminal strip
- No. of rows 1
- Content 250 pc(s)
Technical specifications
- Rated voltage: 320 V
- Dimensioning surge voltage: 4 kV
- Rated current In:12 A.
- Flammability class of insulation material according to UL94: V0
- Diameter connection pin 1.4 mm
- Pin contact type
- Connector design: Fixed connector
- Pollution level: 2
- Material of the contact coating: Tin
- Over voltage category III
- Tape type: Cardboard (for SMD)
- Product type
PCB connector
- Total no. of pins
5
- No. of rows
1
- CS
5 mm
- Factory colour
Green
- Case material
PA
- Manufacturer part #
1753495
- Content
250 pc(s)
- Max. temperature
100 °C
- Min. temperature
-40 °C
- Type
MSTBV 2,5/ 5-G
- Number of pins
5
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3452635 Phoenix Contact 1753495 PCB connector Total number of pins 5 No. of rows 1 250 pc(s)
User & Safety Instructions
User & Safety Instructions 3452635 Phoenix Contact 1753495 PCB connector Total number of pins 5 No. of rows 1 250 pc(s)
Description
PCB baseboard, rated cross-section: 2.5 mm², Colour: Green, rated current: 12 5 A, rated voltage (III/2): 320 V, contact surface: Sn, contact type: Pen, number of potential: 5, number of rows: 1, number of connections: 5, Product family: MSTBV 2.5/..-G, grid dimension: 5 mm, mounting: Wave soldering, pin layout: Linear pinning, pin Pin length [P]: 3.9 mm, number of solder pins per potential: 1, connector system: COMBICON MSTB 2.5, mating face direction: standard, locking: without, mounting method: without, packaging type: packed in carton
