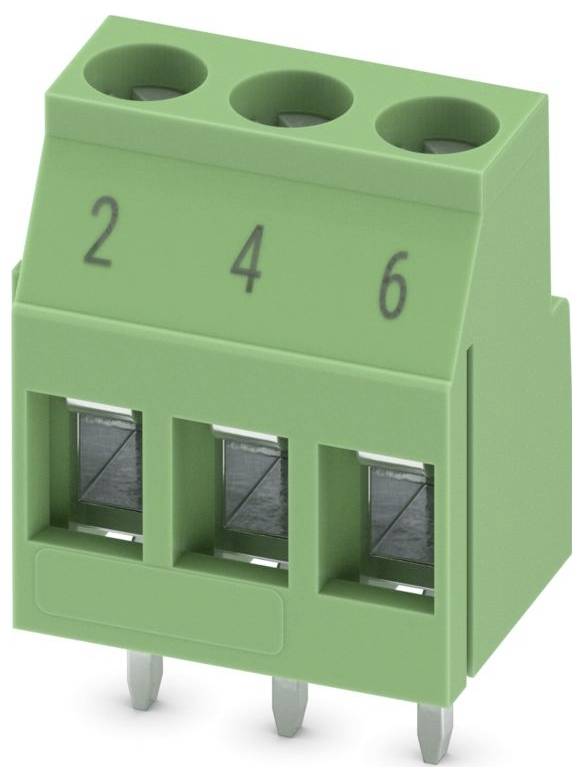

Image similar
Phoenix Contact 1786024 PCB terminal 2.5 mm² Number of pins 3 Green 50 pc(s)
Product type
PCB terminal
CS
5 mm
Pins per row
3
Number of pins
3
Type
MKDS 3/ 3 BD:2-6 MQ
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Type
MKDS 3/ 3 BD:2-6 MQ
- Product type
PCB terminal
- Features
+ extractor sleeve
- CS
5 mm
- No. of rows
1
- Pins per row
3
- Number of pins
3
- Series
MKDS
- Nominal current
24 A
- Cross section (flexible) (min.)
0.2 mm²
- Nominal current - rounded value
24 A
- Cross section (inflexible) (min.)
0.2 mm²
- Cross section (flexible) (max.)
2.5 mm²
- Cross section (inflexible) (max.)
4 mm²
- Contact material
Tin
- Factory colour
Green
- Wire protection
Yes
- Manufacturer part #
1786024
- Content
50 pc(s)
- Height
23 mm
- Case colour
Green
23 mm
Green
400 V
-40-105 °C
Solder
V0
1
4 kV
III
2
Screw connection
Soldering connection
1.3 mm
5 mm
Tin
5 mm
Carton (for SMD)
0.2-4 mm²
0.25-2.5 mm²
0.2-2.5 mm²
0.2-1.5 mm²
Other
Connecting contact
24 A
- UKCA
yes
