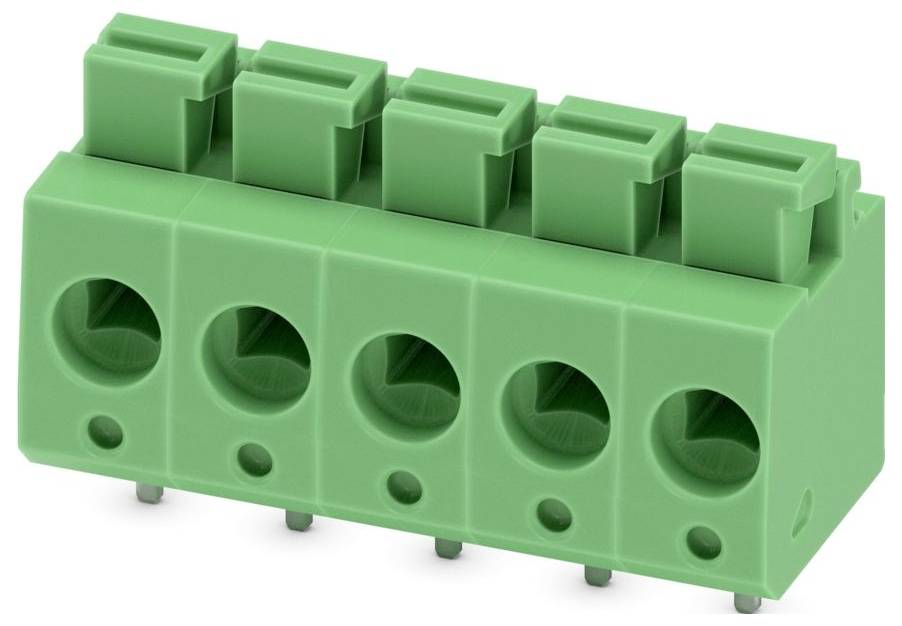

Image similar
Phoenix Contact 1792892 PCB terminal 2.5 mm² Number of pins 5 Green 100 pc(s)
Product type
PCB terminal
CS
5 mm
Pins per row
5
Number of pins
5
Connection
Push-in spring-loaded terminal
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
- Content 100 pc(s)
Technical specifications
- Type
PTS 1,5/ 5-5,0-H
- Product type
PCB terminal
- CS
5 mm
- No. of rows
1
- Pins per row
5
- Number of pins
5
- Series
PTS
- Connection
Push-in spring-loaded terminal
- Nominal current
16 A
- Cross section (flexible) (min.)
0.14 mm²
- Nominal current - rounded value
16 A
- Cross section (inflexible) (min.)
0.14 mm²
- Cross section (flexible) (max.)
2.5 mm²
- Cross section (inflexible) (max.)
2.5 mm²
- Connector orientation
Parallel (to the PCB)
- Contact material
Tin
- Factory colour
Green
- Wire protection
Yes
- Manufacturer part #
1792892
- Content
100 pc(s)
- Height
16.1 mm
- Case colour
Green
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3575369 Phoenix Contact 1792892 PCB terminal 2.5 mm² Number of pins 5 Green 100 pc(s)
User & Safety Instructions
User & Safety Instructions 3575369 Phoenix Contact 1792892 PCB terminal 2.5 mm² Number of pins 5 Green 100 pc(s)
