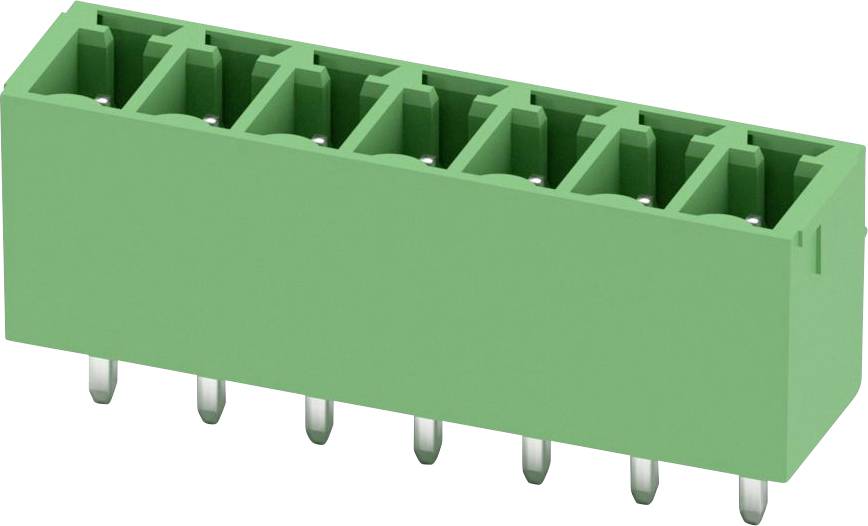

Phoenix Contact 1803471 PCB connector Total number of pins 7 No. of rows 1 100 pc(s)
Product type
PCB connector
Total no. of pins
7
CS
3.81 mm
Content
100 pc(s)
No. of rows
1
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
PCB terminal strip
- No. of rows 1
- Content 100 pc(s)
Technical specifications
- Rated voltage: 160 V
- Dimensioning surge voltage: 2.5 kV
- Rated current In:8 A.
- Flammability class of insulation material according to UL94: V0
- Diameter connection pin 1.2 mm
- Pin contact type
- Connector design: Fixed connector
- Pollution level: 2
- Material of the contact coating: Tin
- Over voltage category III
- Tape type: Cardboard (for SMD)
- Product type
PCB connector
- Total no. of pins
7
- No. of rows
1
- CS
3.81 mm
- Factory colour
Green
- Case material
PA
- Manufacturer part #
1803471
- Content
100 pc(s)
- Max. temperature
100 °C
- Min. temperature
-40 °C
- Type
MCV 1,5/ 7-G-3,81
- Number of pins
7
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3452647 Phoenix Contact 1803471 PCB connector Total number of pins 7 No. of rows 1 100 pc(s)
User & Safety Instructions
User & Safety Instructions 3452647 Phoenix Contact 1803471 PCB connector Total number of pins 7 No. of rows 1 100 pc(s)
Description
PCB baseboard, rated cross-section: 1.5 mm², Colour: Green, rated current: 8 7 A, rated voltage (III/2): 160 V, contact surface: Sn, contact type: Pin, number of potential: 7, number of rows: 1, number of connections: 3.81, Product family: MCV 1.5/...-G, grid dimension: 7 mm, mounting: Wave soldering, pin layout: Linear pinning, pin Pin length [P]: 3.4 mm, number of soldering pins per potential: 1, connector system: COMBICON MC 1.5, mating face: standard, locking: without, mounting method: without, packing type: packed in carton
