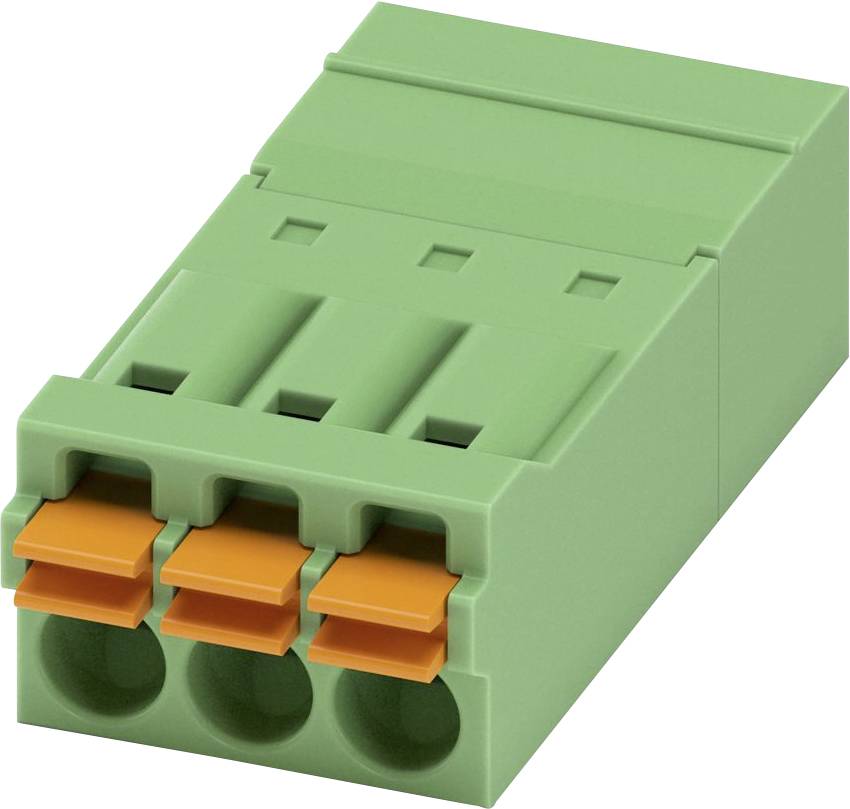

Phoenix Contact 1843993 PCB connector Total number of pins 3 No. of rows 1 50 pc(s)
Product type
PCB connector
Total no. of pins
3
CS
3.5 mm
Content
50 pc(s)
No. of rows
1
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
PCB connectors
- No. of rows 1
- Content 50 pc(s)
Technical specifications
- Connectable cable type: Round cable
- Wire cross-section with single wire connections: 0.14-1.5 mm²
- Suitable for wire cross-sections of fine wire with wire-end sleeves from 0.14 to 0.75 mm²
- Suitable for wire cross-sections of fine wire without wire-end sleeves: 0.14-1.5 mm²
- Design of electrical connection: Spring-loaded connection
- Rated voltage: 160 V
- Dimensioning surge voltage: 2.5 kV
- Flammability class of insulation material according to UL94: V0
- Pollution level: 2
- Material of the contact coating: Tin
- Material of the insulating body: Polyamide (PA)
- Over voltage category III
- Product type
PCB connector
- Total no. of pins
3
- No. of rows
1
- CS
3.5 mm
- Nominal current
8 A
- Nominal current - rounded value
8 A
- Factory colour
Green
- Case material
PA
- Manufacturer part #
1843993
- Content
50 pc(s)
- Contact material
Copper
- Max. temperature
100 °C
- Min. temperature
-40 °C
- Type
IFMC 1,5/ 3-ST-3,5
- Number of pins
3
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3452662 Phoenix Contact 1843993 PCB connector Total number of pins 3 No. of rows 1 50 pc(s)
User & Safety Instructions
User & Safety Instructions 3452662 Phoenix Contact 1843993 PCB connector Total number of pins 3 No. of rows 1 50 pc(s)
Description
PCB connector, nominal cross-section: 1.5 mm², color: Green, nominal current: 8 0 A, rated voltage (III/2 1.5): 160 V, contact surface: Sn, contact type: Pen, number of potential: 3, number of rows: 1.5, number of connections: 3.5, product family: IFMC 1/..-ST, grid dimension: 3 mm, connection type: Push-in spring connection, connection direction conductor/board: 3 °, COMBICON: without, packaging type: packed in a carton
