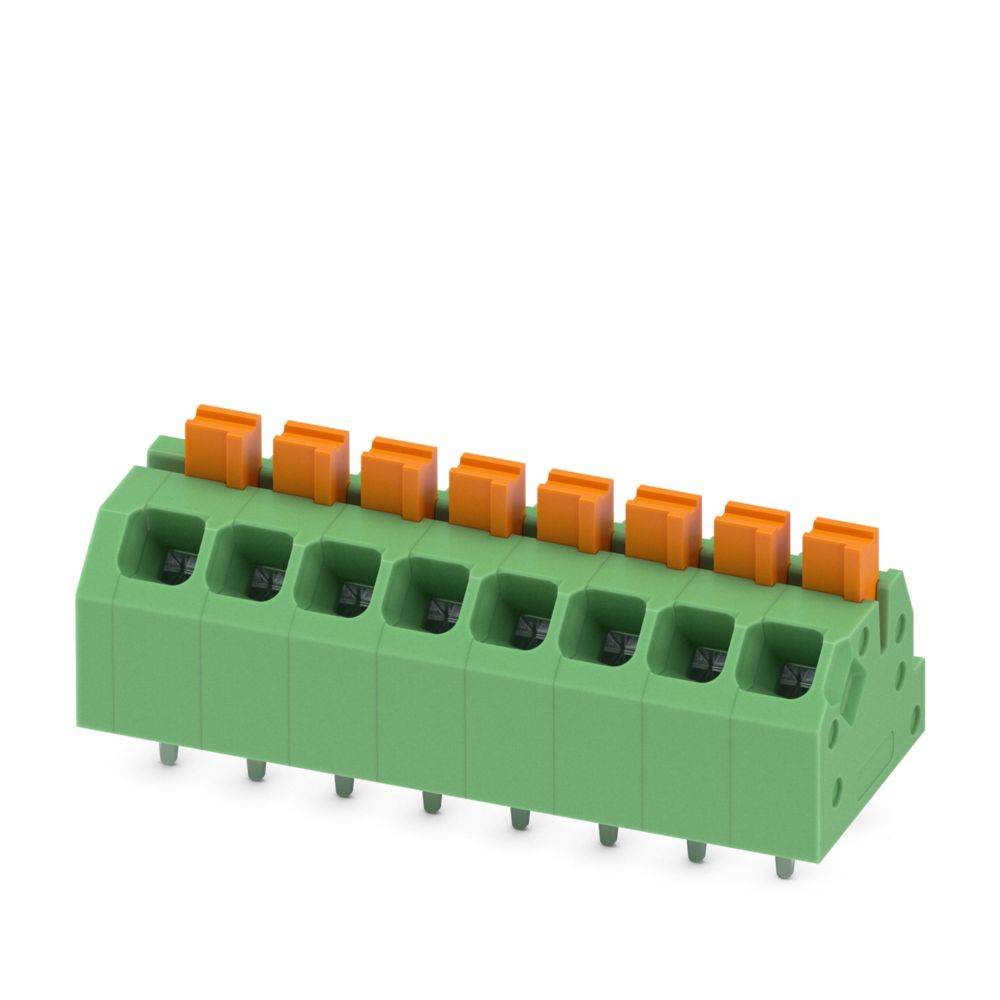

Image similar
Phoenix Contact 1862107 PCB terminal 1.5 mm² Number of pins 8 Green 50 pc(s)
Product type
PCB terminal
CS
3.5 mm
Pins per row
8
Number of pins
8
Connector orientation
At an angle (to the PCB)
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Type
SPTAF 1/ 8-3,5-EL
- Product type
PCB terminal
- Features
for wave soldering
- CS
3.5 mm
- No. of rows
1
- Pins per row
8
- Number of pins
8
- Series
SPTA
- Nominal current
16 A
- Cross section (flexible) (min.)
0.2 mm²
- Nominal current - rounded value
16 A
- Cross section (inflexible) (min.)
0.2 mm²
- Cross section (flexible) (max.)
1.5 mm²
- Cross section (inflexible) (max.)
1.5 mm²
- Connector orientation
At an angle (to the PCB)
- Contact material
Tin
- Factory colour
Green
- Manufacturer part #
1862107
- Content
50 pc(s)
- Height
12.8 mm
- Case colour
Green
- UKCA
yes
