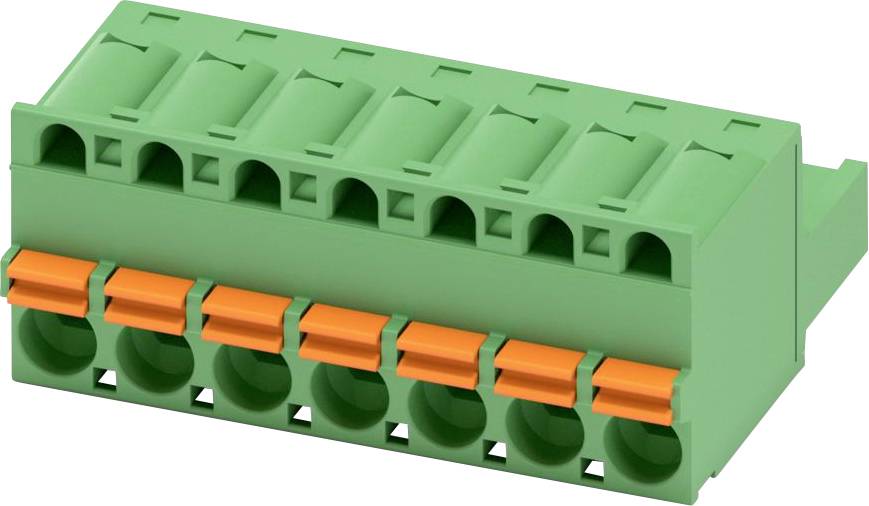

Phoenix Contact 1910403 PCB connector Total number of pins 7 No. of rows 1 50 pc(s)
Product type
PCB connector
Total no. of pins
7
CS
5 mm
Content
50 pc(s)
No. of rows
1
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
PCB connector
- No. of rows 1
- Content 50 pc(s)
Technical specifications
- Connectable cable type: Round cable
- Wire cross-section with single wire connections: 0.2-2.5 mm²
- Suitable for wire cross-sections of fine wire with wire-end sleeves from 0.25 to 2.5 mm²
- Suitable for wire cross-sections of fine wire without wire-end sleeves: 0.2-2.5 mm²
- Design of electrical connection: Spring-loaded connection
- Rated voltage: 320 V
- Dimensioning surge voltage: 4 kV
- Flammability class of insulation material according to UL94: V0
- Contact version: Socket
- Pollution level: 2
- Material of the contact coating: Tin
- Material of the insulating body: Polyamide (PA)
- Over voltage category III
- Product type
PCB connector
- Total no. of pins
7
- No. of rows
1
- CS
5 mm
- Nominal current
12 A
- Nominal current - rounded value
12 A
- Factory colour
Green
- Case material
PA
- Manufacturer part #
1910403
- Content
50 pc(s)
- Contact material
Copper
- Max. temperature
100 °C
- Min. temperature
-40 °C
- Type
FKC 2,5/ 7-ST
- Number of pins
7
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3452672 Phoenix Contact 1910403 PCB connector Total number of pins 7 No. of rows 1 50 pc(s)
User & Safety Instructions
User & Safety Instructions 3452672 Phoenix Contact 1910403 PCB connector Total number of pins 7 No. of rows 1 50 pc(s)
Description
PCB connector, nominal cross-section: 2.5 mm², color: Green, nominal current: 12 0 A, rated voltage (III/2): 320 V, contact surface: Sn, contact type: Bush, number of potentials: 7, number of rows: 1, number of connections: 5, product family: FKC 2.5/...-ST, grid dimension: 7 mm, connection type: Push-in spring connection, connection direction conductor/board: 7 °, snap hook: COMBICON MSTB 2.5,lock: without, mounting type: without, packaging type: packed in cardboard
