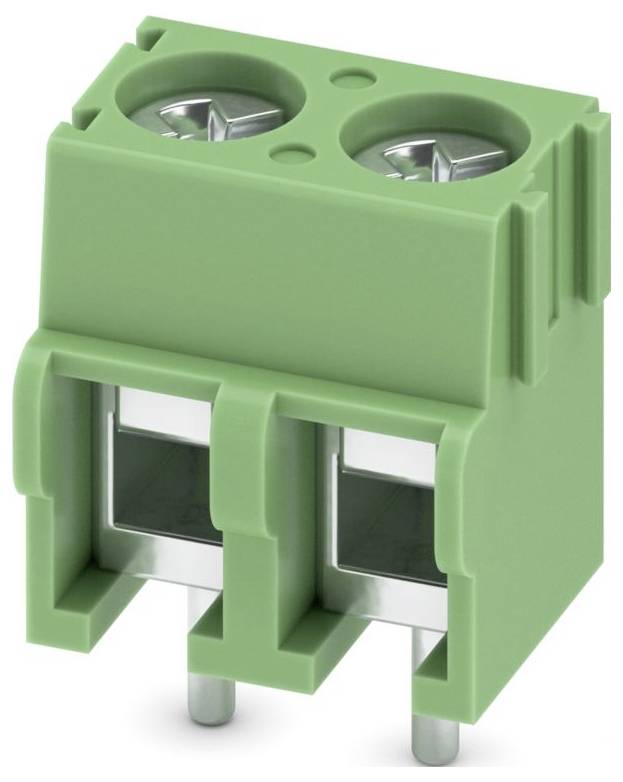

Phoenix Contact 1935161 PCB terminal 2.5 mm² Number of pins 2 Green 250 pc(s)
Product type
PCB terminal
CS
5 mm
Pins per row
2
Number of pins
2
Connector orientation
Parallel (to the PCB)
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Type
PT 1,5/ 2-5,0-H
- Product type
PCB terminal
- Features
+ wire protector
- CS
5 mm
- No. of rows
1
- Pins per row
2
- Number of pins
2
- Nominal current
17.5 A
- Cross section (flexible) (min.)
0.2 mm²
- Nominal current - rounded value
17.5 A
- Cross section (inflexible) (min.)
0.2 mm²
- Cross section (flexible) (max.)
2.5 mm²
- Cross section (inflexible) (max.)
2.5 mm²
- Connector orientation
Parallel (to the PCB)
- Contact material
Tin
- Factory colour
Green
- Wire protection
Yes
- Manufacturer part #
1935161
- Content
250 pc(s)
- Height
14.8 mm
- Length
3.5 mm
- Case colour
Green
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3577946 Phoenix Contact 1935161 PCB terminal 2.5 mm² Number of pins 2 Green 250 pc(s)
User & Safety Instructions
User & Safety Instructions 3577946 Phoenix Contact 1935161 PCB terminal 2.5 mm² Number of pins 2 Green 250 pc(s)
