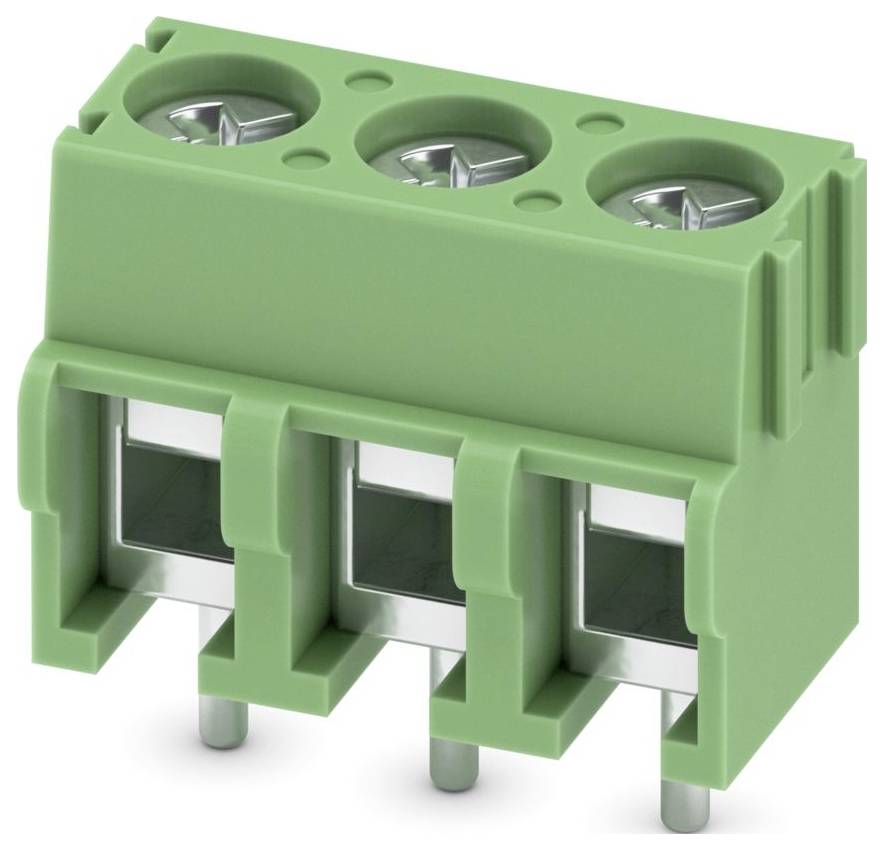

Phoenix Contact 1935174 PCB terminal 2.5 mm² Number of pins 3 Green 250 pc(s)
Product type
PCB terminal
CS
5 mm
Pins per row
3
Number of pins
3
Connection
Screw terminal
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
- Content 250 pc(s)
Technical specifications
- Type
PT 1,5/ 3-5,0-H
- Product type
PCB terminal
- Features
+ wire protector
- CS
5 mm
- No. of rows
1
- Pins per row
3
- Number of pins
3
- Connection
Screw terminal
- Nominal current
17.5 A
- Cross section (flexible) (min.)
0.2 mm²
- Nominal current - rounded value
17.5 A
- Cross section (inflexible) (min.)
0.2 mm²
- Cross section (flexible) (max.)
2.5 mm²
- Cross section (inflexible) (max.)
2.5 mm²
- Contact material
Tin
- Factory colour
Green
- Wire protection
Yes
- Manufacturer part #
1935174
- Content
250 pc(s)
- Height
14.8 mm
- Case colour
Green
- UKCA
yes
