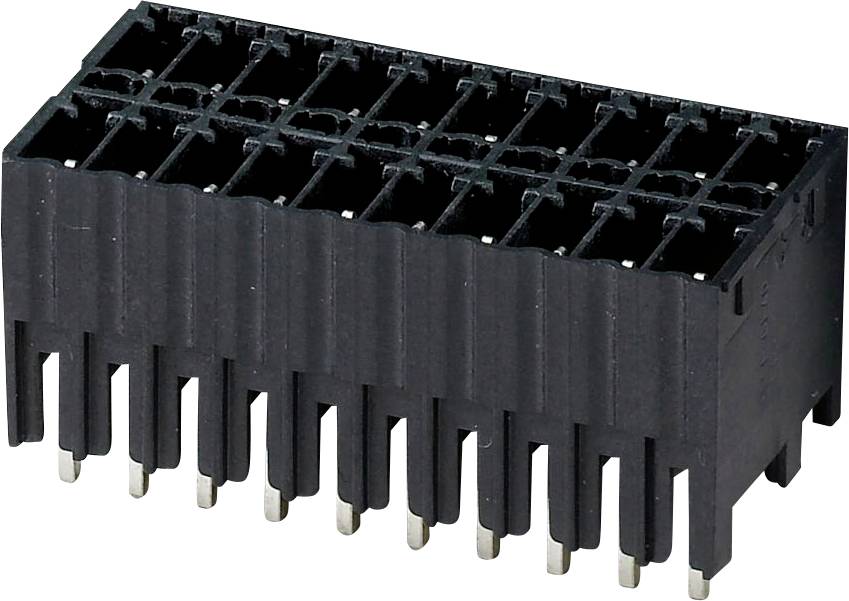

Phoenix Contact 1952814 PCB connector Total number of pins 10 No. of rows 2 60 pc(s)
Product type
PCB connector
Total no. of pins
10
CS
3.5 mm
Content
60 pc(s)
No. of rows
2
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
PCB terminal strip
- No. of rows 2
- Content 60 pc(s)
Technical specifications
- Rated voltage: 160 V
- Dimensioning surge voltage: 2.5 kV
- Rated current In:8 A.
- Flammability class of insulation material according to UL94: V0
- Diameter connection pin 1.4 mm
- Pin contact type
- Connector design: Fixed connector
- Pollution level: 2
- Material of the contact coating: Tin
- Over voltage category III
- Tape type: Cardboard (for SMD)
- Product type
PCB connector
- Total no. of pins
10
- No. of rows
2
- CS
3.5 mm
- Factory colour
Black
- Case material
PA
- Manufacturer part #
1952814
- Content
60 pc(s)
- Max. temperature
100 °C
- Min. temperature
-40 °C
- Type
MCDNV 1,5/ 5-G1-3,5 P26THR
- Number of pins
10
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3453287 Phoenix Contact 1952814 PCB connector Total number of pins 10 No. of rows 2 60 pc(s)
User & Safety Instructions
User & Safety Instructions 3453287 Phoenix Contact 1952814 PCB connector Total number of pins 10 No. of rows 2 60 pc(s)
Description
PCB baseboard, rated cross-section: 1.5 mm², Colour: Black, rated current: 8 10 A, rated voltage (III/2): 160 V, contact surface: Sn, contact type: Pen, number of potential: 10, number of rows: 2, number of connections: 3.5, product family: MCDNV 1.5/.-G1-THR, grid dimension: 5 mm, mounting: THR-soldering / wave length, pin-pins: 2.6 mm, number of soldering pins per potential: 1, plug system: COMBICON FMC 1.5 - MCDN 1.5, plug face direction: standard, locking: without, mounting type: without, packing type: packed in cardboard, the pin length is 26 mm. For user information and design recommendations for Through Hole Reflow technology, see Downloads.
