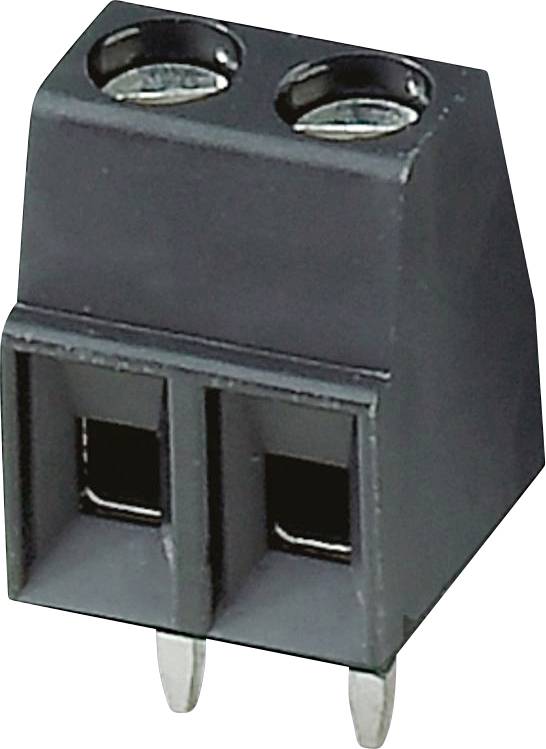

Phoenix Contact 1985823 PCB terminal 1.5 mm² Number of pins 2 Black 360 pc(s)
Product type
PCB terminal
CS
3.81 mm
Pins per row
2
Number of pins
2
Connection
Screw terminal
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Type
MKDS 1/ 2-3,81 HT BK
- Product type
PCB terminal
- Features
+ extractor sleeve
- CS
3.81 mm
- No. of rows
1
- Pins per row
2
- Number of pins
2
- Series
MKDS
- Connection
Screw terminal
- Nominal current
13.5 A
- Cross section (flexible) (min.)
0.14 mm²
- Nominal current - rounded value
13.5 A
- Cross section (inflexible) (min.)
0.14 mm²
- Cross section (flexible) (max.)
1.5 mm²
- Cross section (inflexible) (max.)
1.5 mm²
- Contact material
Tin
- Factory colour
Black
- Manufacturer part #
1985823
- Content
360 pc(s)
- Height
12 mm
- UKCA
yes
