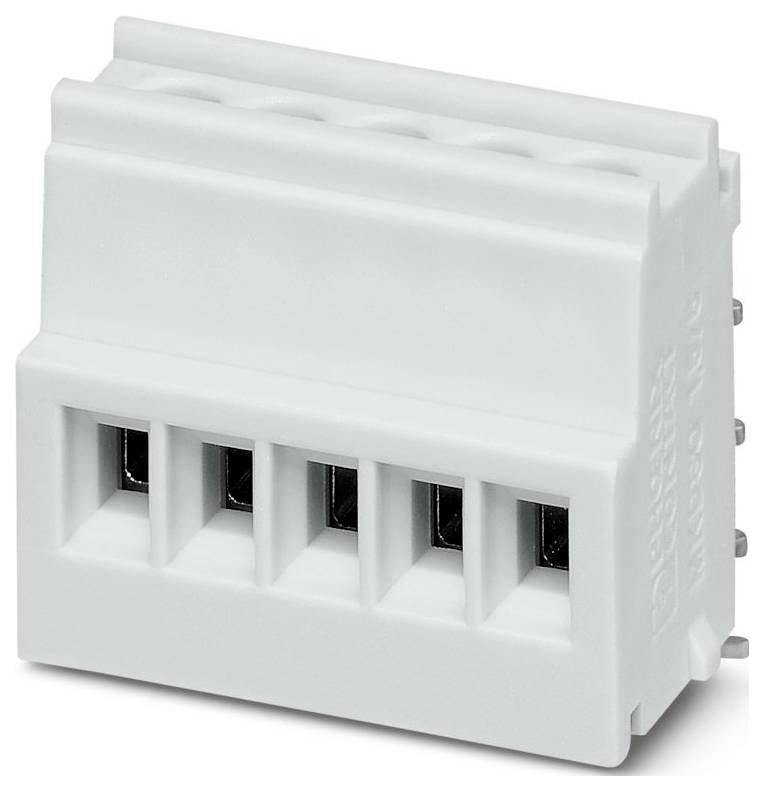

Image similar
Phoenix Contact 2278416 PCB terminal 1.5 mm² Number of pins 5 Light grey 1 pc(s)
Product type
PCB terminal
CS
3.5 mm
Pins per row
5
Number of pins
5
Connection
Screw terminal
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
- Content 1 pc(s)
Technical specifications
- Type
MKDSO 1,5/ 5-R-3,5 KMGY
- Product type
PCB terminal
- Features
+ extractor sleeve
- CS
3.5 mm
- No. of rows
1
- Pins per row
5
- Number of pins
5
- Series
MKDSO
- Connection
Screw terminal
- Nominal current
8 A
- Cross section (flexible) (min.)
0.08 mm²
- Nominal current - rounded value
8 A
- Cross section (inflexible) (min.)
0.14 mm²
- Cross section (flexible) (max.)
1.5 mm²
- Cross section (inflexible) (max.)
1.5 mm²
- Contact material
Tin
- Factory colour
Light grey
- Wire protection
Yes
- Manufacturer part #
2278416
- Content
1 pc(s)
- Height
21.25 mm
- Case colour
Grey
- UKCA
yes
