Name: Phoenix Contact 2702334 FL SWITCH 2204-2TC-2SFX Industrial Ethernet switch 10 / 100 / 1000 MBit/s
Brand: Phoenix Contact
SKU: 1830261

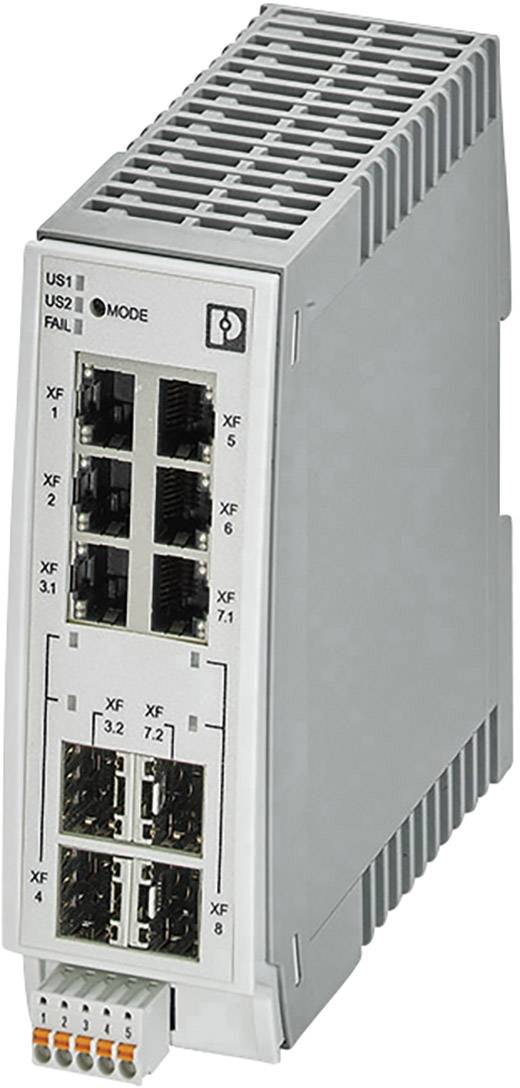

Industrial Ethernet switch with multiple RJ45 and SFP ports for network connectivity; DIN rail mounting, grey enclosure.

'Industrial Ethernet FL SWITCH 2000 Overview.' Table shows various switch models with transmission rates, ports, and applications. Manufacturer: Phoenix Contact.

1/3

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Industrial Ethernet Switch FL SWITCH 2204-2 TC-2 SFX

Technical specifications

Product type: Industrial Ethernet switch

LAN transfer rate: 10 MBit/s
100 MBit/s

Transfer rate: 10 / 100 / 1000 MBit/s

Working principle: Managed switch

Ethernet ports: 4

SFP ports: 2 x

10/100/1000 Mbps ports: 2 x

Fibre-optic ports: 2

Power supply (LOV): via terminal

Weight: 462.000 g

Width: 45 mm

Height: 130 mm

Depth: 115 mm

Type: FL SWITCH 2204-2TC-2SFX

Interfaces: SFP

: IP20

Operating voltage: 24 V DC

Current consumption: 250 mA

Max. ambient temperature: +70 °C

Min. ambient temperature: -40 °C

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1830261 Phoenix Contact 2702334 FL SWITCH 2204-2TC-2SFX Industrial Ethernet switch 10 / 100 / 1000 MBit/s

Information

Information 1830261 Phoenix Contact 2702334 FL SWITCH 2204-2TC-2SFX Industrial Ethernet switch 10 / 100 / 1000 MBit/s

Description

The Managed Switches of the variants 2200 and 2300 with SFP ports offer highest flexibility in applications. Thus, depending on the SFP module cable lengths of up to 80 km can be done.
Features:
· Media Redundancy Protocol (MRP) according to IEC 62439
· Extended temperature range (-40°C ... +70 °C)
· Redundant Power Supply
· IGMP Snooping/querier
· HTTPS/SNMPv3
· Port-based/Pool-based DHCP Server, DHCP option 82
