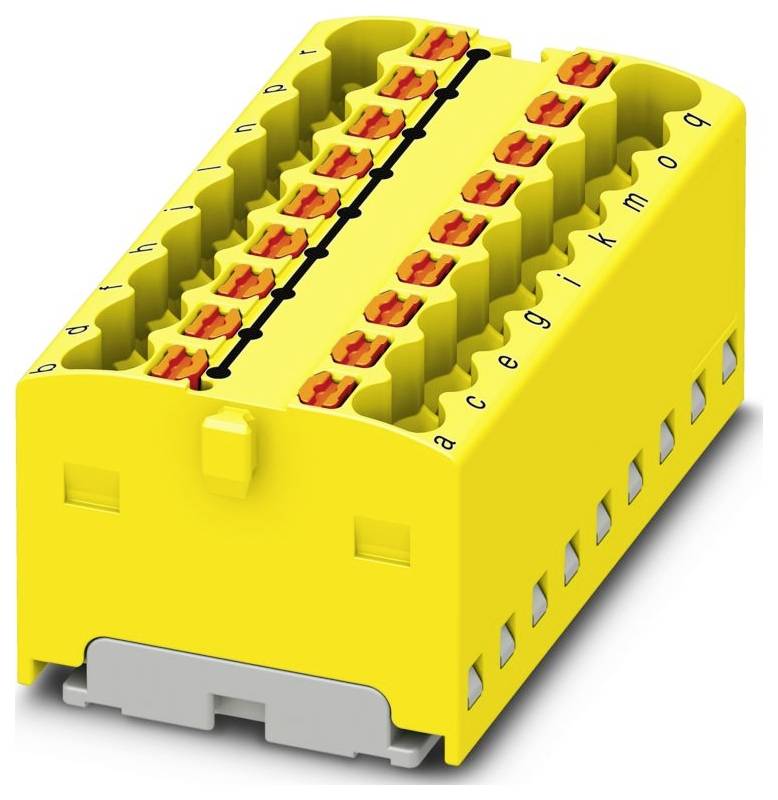

Image similar
Phoenix Contact 3002770 Distribution block Push-in connector Yellow 20 pc(s)
Product type
Distribution block
Connection
Push-in connector
Cross section (flexible) (max.)
2.5 mm²
Cross section (inflexible) (max.)
2.5 mm²
Nominal current - rounded value
17.5 A
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Distribution block
- Features
built-in jumper
- Connection
Push-in connector
- Cross section (flexible) (min.)
0.14 mm²
- Cross section (flexible) (max.)
2.5 mm²
- Cross section (inflexible) (min.)
0.14 mm²
- Cross section (inflexible) (max.)
2.5 mm²
- Number of pins
18
- Factory colour
Yellow
- Nominal current
17.5 A
- Nominal current - rounded value
17.5 A
- Nominal voltage
450 V
- Manufacturer part #
3002770
- Content
20 pc(s)
- Type
PTFIX 18X1,5 YE
- Dim
(W x H x D) 37.4 x 21.6 x 17.7 mm
- Width
37.4 mm
- Height
21.6 mm
- Flammability rating
V0
- Depth
17.7 mm
- UKCA
yes
