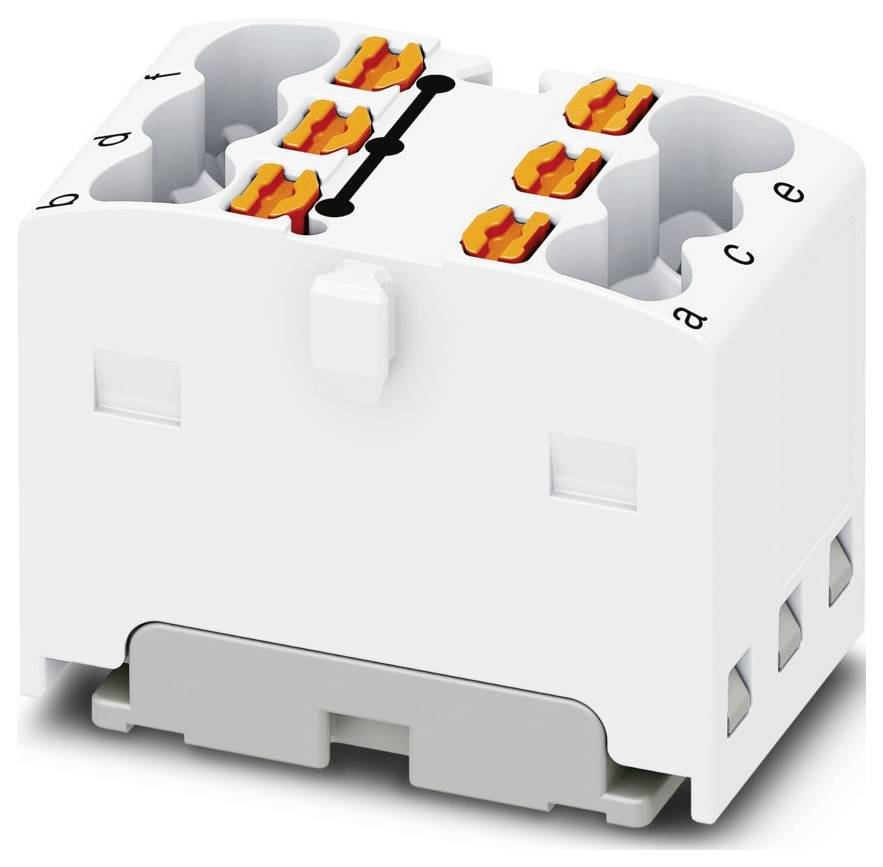

Image similar
Phoenix Contact 3002778 Distribution block White 20 pc(s)
Product type
Distribution block
Cross section (flexible) (max.)
2.5 mm²
Cross section (inflexible) (max.)
2.5 mm²
Nominal current - rounded value
17.5 A
Content
20 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Distribution block
- Features
built-in jumper
- Cross section (flexible) (min.)
0.14 mm²
- Cross section (flexible) (max.)
2.5 mm²
- Cross section (inflexible) (min.)
0.14 mm²
- Cross section (inflexible) (max.)
2.5 mm²
- Number of pins
6
- Factory colour
White
- Nominal current
17.5 A
- Nominal current - rounded value
17.5 A
- Nominal voltage
450 V
- Manufacturer part #
3002778
- Content
20 pc(s)
- Type
PTFIX 6X1,5 WH
- Dim
(W x H x D) 12.5 x 21.6 x 17.7 mm
- Width
12.5 mm
- Height
21.6 mm
- Flammability rating
V0
- Depth
17.7 mm
- UKCA
yes
