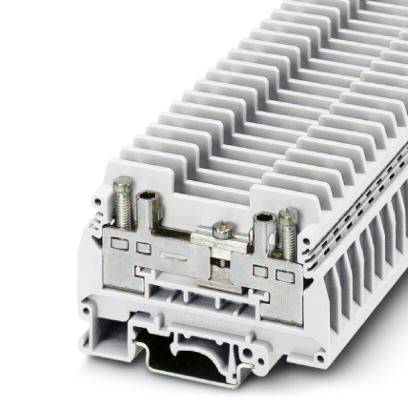

Phoenix Contact 3057364 N terminal Screws White 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
N terminal
Connection
Screws
Cross section (flexible) (max.)
6 mm²
Cross section (inflexible) (max.)
10 mm²
Datasheet (PDF)
Technical specifications
- Number of ports: 2
- Potential: 1
- Nominal cross-section: 6 mm²
- Dimensioning surge voltage: 6 kV
- Over voltage category III
- Insulating material group: I
- Maximum load current: 57 A (at 10 mm² conductor cross-section)
- Open side wall: Yes
- Test specification touch protection: DIN EN 60529 (VDE 0470-1):2000-09
- Hand back safety: Guaranteed
- Target value: 5 N.
- Short time current: 0.72 kA
- Cover width 2.2 mm
- Screw thread: M4
- Tightening torque max. 1.5 Nm
- Packaging type
Piece
- Product type
N terminal
- Features
with screw connection
- Connection
Screws
- Cross section (flexible) (min.)
0.5 mm²
- Cross section (flexible) (max.)
6 mm²
- Cross section (inflexible) (min.)
0.5 mm²
- Cross section (inflexible) (max.)
10 mm²
- AWG (min.)
20
- AWG max.
8
- No. of rows
1
- Factory colour
White
- Nominal current
41 A
- Nominal current - rounded value
41 A
- Nominal voltage
400 V
- Stripping length (max.)
13 mm
- Manufacturer part #
3057364
- Content
1 pc(s)
- Type
URTK/S-IB WH
- Dim
(L x W) 72 mm x 8.2 mm
- Width
8.2 mm
- Length
72 mm
- Rated surge voltage
6 kV
- Contamination level
3
- Flammability rating
V0
- Connector colour
White
- Insulation material
PA
- Insulation
PA
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2225868 Phoenix Contact 3057364 N terminal Screws White 1 pc(s) Piece
Datasheet 2225868 Phoenix Contact 3057364 N terminal Screws White 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 2225868 Phoenix Contact 3057364 N terminal Screws White 1 pc(s) Piece
Description

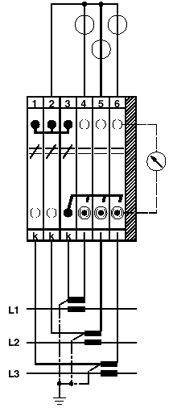

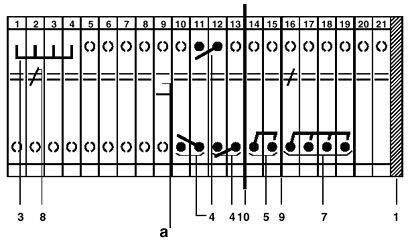

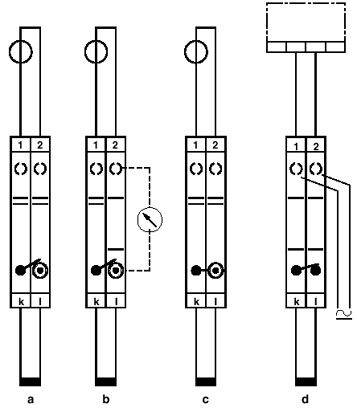

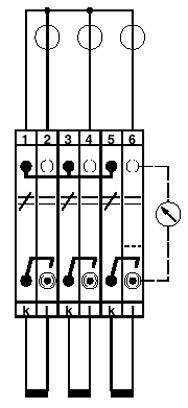

The terminal has a test socket on both sides of the separation point, which can also be used for cross-switching to adjacent terminals.
