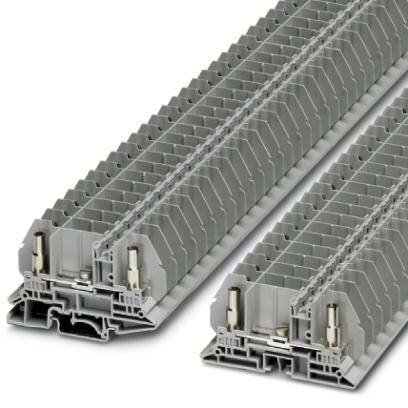

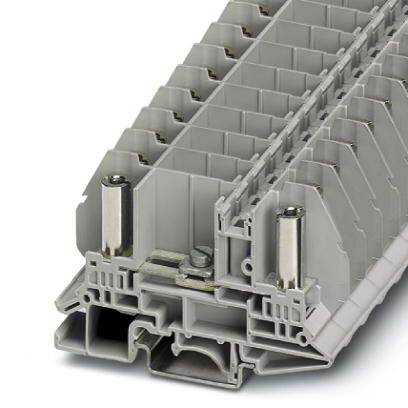

Phoenix Contact 3058114 Sensor offset N terminal Bolt fixings Grey 50 pc(s)
Product type
Sensor offset N terminal
Connection
Bolt fixings
Cross section (flexible) (max.)
10 mm²
Nominal current - rounded value
50 A
Content
50 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Number of ports: 2
- Potential: 1
- Nominal cross-section: 10 mm²
- Dimensioning surge voltage: 8 kV
- Over voltage category III
- Insulating material group: I
- Maximum load current: 50 A (at 10 mm² cross section)
- Open side wall: Yes
- Target value: 5 N.
- Short time current: 1.2 kA
- Cover width 2.2 mm
- Screw thread: M5
- Tightening torque max. 2.2 Nm
- Cross section cable lug connection max.: 10 mm²
- Max. Cable lug width 10 mm
- Pitch: 13 mm
- Product type
Sensor offset N terminal
- Features
+ tapping point
- Connection
Bolt fixings
- Cross section (flexible) (min.)
0.1 mm²
- Cross section (flexible) (max.)
10 mm²
- AWG (min.)
26
- AWG max.
8
- No. of rows
1
- Factory colour
Grey
- Nominal current
50 A
- Nominal current - rounded value
50 A
- Nominal voltage
800 V
- Manufacturer part #
3058114
- Content
50 pc(s)
- Type
RBO 5-T
- Dim
(L x W) 79.9 mm x 13 mm
- Width
13 mm
- Length
79.9 mm
- Rated surge voltage
8 kV
- Contamination level
3
- Flammability rating
V0
- Connector colour
Grey
- Insulation material
PA
- Insulation
PA
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2225869 Phoenix Contact 3058114 Sensor offset N terminal Bolt fixings Grey 50 pc(s)
Datasheet 2225869 Phoenix Contact 3058114 Sensor offset N terminal Bolt fixings Grey 50 pc(s)
User & Safety Instructions
User & Safety Instructions 2225869 Phoenix Contact 3058114 Sensor offset N terminal Bolt fixings Grey 50 pc(s)
Description
Connection screws with 4 mm test tap.
