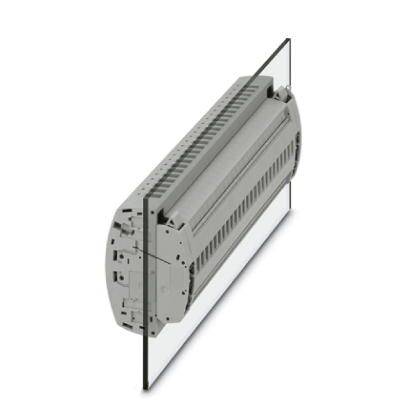

Phoenix Contact 3069804 Test terminal Screws Grey 1 pc(s)
EAN:
Part number:
Item no:
Product type
Test terminal
Connection
Screws
Cross section (flexible) (max.)
10 mm²
Cross section (inflexible) (max.)
10 mm²
Content
1 pc(s)
Datasheet (PDF)
Technical specifications
- Number of ports: 50
- Potentials: 25
- Nominal cross-section: 6 mm²
- Dimensioning surge voltage: 4 kV
- Over voltage category III
- Insulating material group: I
- Maximum load current 30 A (at 10 mm² cross section)
- Open side wall: No.
- Target value: 5 N.
- Short time current: 300 A
- Screw thread: M4
- Tightening torque max. 1.8 Nm
- Pitch: 8.2 mm
- Mounting type: Wall mounting
- Product type
Test terminal
- Features
with screw connection
- Connection
Screws
- Cross section (flexible) (min.)
0.2 mm²
- Cross section (flexible) (max.)
10 mm²
- Cross section (inflexible) (min.)
0.2 mm²
- Cross section (inflexible) (max.)
10 mm²
- AWG (min.)
24
- AWG max.
8
- No. of rows
1
- Number of pins
25
- Factory colour
Grey
- Nominal voltage
400 V
- Stripping length (max.)
12 mm
- Manufacturer part #
3069804
- Content
1 pc(s)
- Type
UTWE 6-2/25

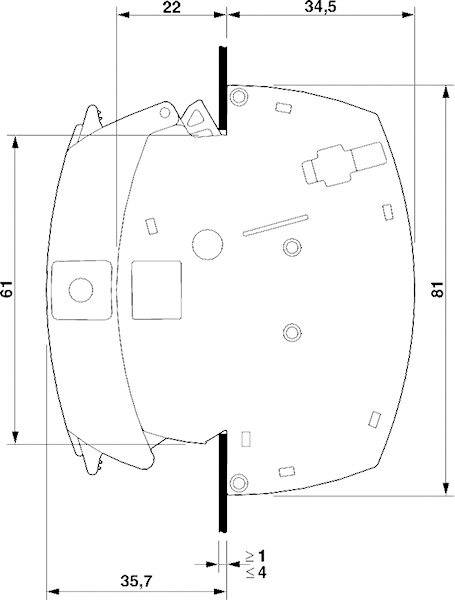

- Dim
(L x W x H) 81 x 237.8 x 56.5 mm

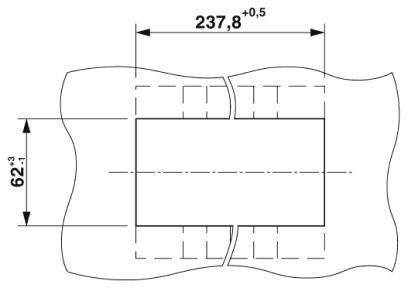

- Width
237.8 mm
- Height
56.5 mm
- Length
81 mm
- Rated surge voltage
4 kV
- Flammability rating
V0
- Connector colour
Grey
- Insulation material
PA
- Insulation
PA
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2225875 Phoenix Contact 3069804 Test terminal Screws Grey 1 pc(s)
Datasheet 2225875 Phoenix Contact 3069804 Test terminal Screws Grey 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2225875 Phoenix Contact 3069804 Test terminal Screws Grey 1 pc(s)
Description
Economical thanks to the demand-oriented, modular design and use of the standardized CLPLINE complete accessories. Space-saving thanks to compact, modular test connector strips.
