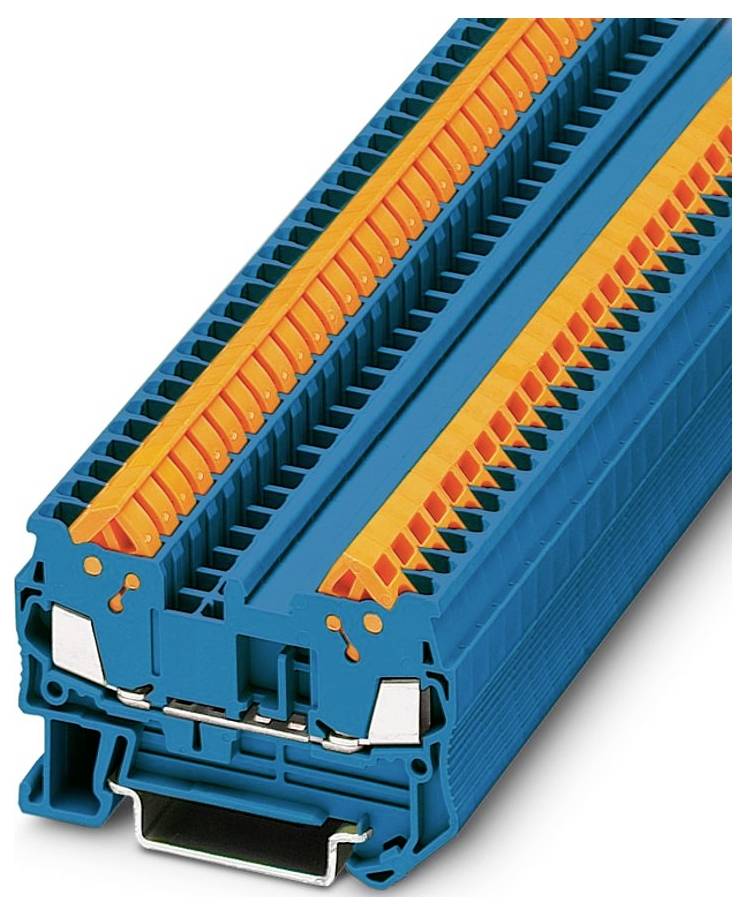

Phoenix Contact 3205022 Continuity Quick-connect Blue 50 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Continuity
Connection
Quick-connect
Cross section (flexible) (max.)
1.5 mm²
Cross section (inflexible) (max.)
1.5 mm²
Datasheet (PDF)
Technical specifications
- Packaging type
Piece
- Product type
Continuity
- Features
built-in jumper
- Connection
Quick-connect
- Cross section (flexible) (min.)
0.25 mm²
- Cross section (flexible) (max.)
1.5 mm²
- Cross section (inflexible) (min.)
0.25 mm²
- Cross section (inflexible) (max.)
1.5 mm²
- No. of rows
1
- Pins per row
2
- Number of pins
2
- Factory colour
Blue
- Nominal current
17.5 A
- Nominal current - rounded value
17.5 A
- Nominal voltage
800 V
- Manufacturer part #
3205022
- Content
50 pc(s)
- Type
QTC 1,5 BU
- Dim
(W x H x D) 5.2 x 58.8 x 39.3 mm
- Width
5.2 mm
- Height
58.8 mm
- Flammability rating
V0
- Depth
39.3 mm
- UKCA
yes
