Name: Phoenix Contact 3206416 Continuity Quick-connect Grey 50 pc(s)
Brand: Phoenix Contact
SKU: 3581312

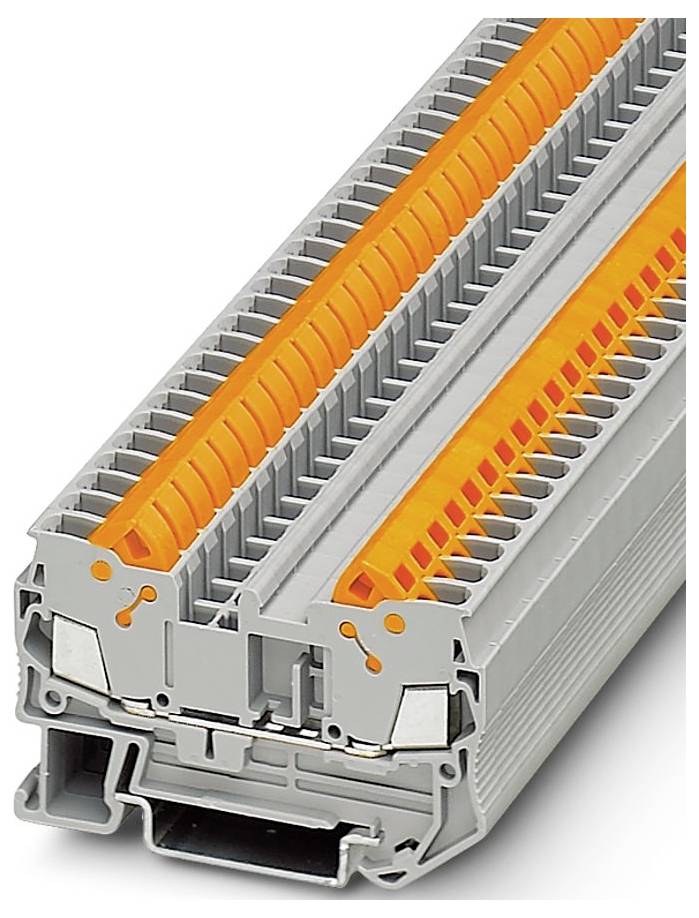

A gray and orange electrical terminal block with multiple connection slots, used for securing and organizing wire connections in circuits.

Image similar

Product type

Continuity

Connection

Quick-connect

Cross section (flexible) (max.)

2.5 mm²

Cross section (inflexible) (max.)

2.5 mm²

Nominal current - rounded value

24 A

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Product type: Continuity

Features: built-in jumper

Connection: Quick-connect

Cross section (flexible) (min.): 0.5 mm²

Cross section (flexible) (max.): 2.5 mm²

Cross section (inflexible) (min.): 0.5 mm²

Cross section (inflexible) (max.): 2.5 mm²

Factory colour: Grey

Nominal current: 24 A

Nominal current - rounded value: 24 A

Nominal voltage: 800 V

Manufacturer part #: 3206416

Content: 50 pc(s)

Type: QTC 2,5

Dim: (W x H x D) 6.2 x 62.6 x 39.3 mm

Width: 6.2 mm

Height: 62.6 mm

Flammability rating: V0

Depth: 39.3 mm

UKCA: yes

Variants(All information is without VAT, plus shipping costs)

Content

Cross section (flexible) (max.)

Cross section (flexible) (min.)

Cross section (inflexible) (max.)

Cross section (inflexible) (min.)

Factory colour

Nominal current - rounded value

Phoenix Contact 0719090 Continuity White 50 pc(s) Piece

Item no:3558635

Unavailable

Conrad Electronic

50 pc(s)

2.5 mm²

0.2 mm²

4 mm²

0.2 mm²

White

24 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

Phoenix Contact 0719100 Continuity Black 50 pc(s)

Item no:3558632

Unavailable

Conrad Electronic

50 pc(s)

2.5 mm²

0.2 mm²

4 mm²

0.2 mm²

Black

24 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

Phoenix Contact 1002940 Continuity Spring-loaded connector Orange 50 pc(s)

Item no:3561532

Unavailable

Conrad Electronic

50 pc(s)

4 mm²

0.08 mm²

6 mm²

0.08 mm²

Orange

32 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

Phoenix Contact 1013464 Continuity Spring-loaded connector Red 50 pc(s) Piece

Item no:3561468

Unavailable

Conrad Electronic

50 pc(s)

4 mm²

0.08 mm²

6 mm²

0.08 mm²

Red

32 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

Phoenix Contact 1013467 Continuity Spring-loaded connector Black 50 pc(s)

Item no:3561492

Unavailable

Conrad Electronic

50 pc(s)

6 mm²

0.08 mm²

6 mm²

0.08 mm²

Black

32 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

Phoenix Contact 1030164 Continuity Push-in connector Yellow 50 pc(s)

Item no:3561876

Unavailable

Conrad Electronic

50 pc(s)

25 mm²

0.5 mm²

25 mm²

0.5 mm²

Yellow

76 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

Phoenix Contact 1075387 Continuity Screw terminal Grey 50 pc(s)

Item no:3562874

Unavailable

Conrad Electronic

50 pc(s)

6 mm²

0.2 mm²

10 mm²

0.2 mm²

Grey

41 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

Phoenix Contact 1079167 Continuity Black 50 pc(s)

Item no:3563307

Unavailable

Conrad Electronic

50 pc(s)

6 mm²

0.14 mm²

6 mm²

0.14 mm²

Black

32 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

Phoenix Contact 1079168 Continuity White 50 pc(s)

Item no:3563316

Unavailable

Conrad Electronic

50 pc(s)

6 mm²

0.14 mm²

6 mm²

0.14 mm²

White

32 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

Phoenix Contact 1080103 Continuity Push-in connector Green 50 pc(s) Piece

Item no:3563043

Unavailable

Conrad Electronic

50 pc(s)

6 mm²

0.2 mm²

6 mm²

0.2 mm²

Green

32 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

Documents & Downloads

Datasheet

Datasheet 3581312 Phoenix Contact 3206416 Continuity Quick-connect Grey 50 pc(s)

User & Safety Instructions

User & Safety Instructions 3581312 Phoenix Contact 3206416 Continuity Quick-connect Grey 50 pc(s)

Technical specifications

Variants(All information is without VAT, plus shipping costs)

Documents & Downloads

Datasheet

User & Safety Instructions
