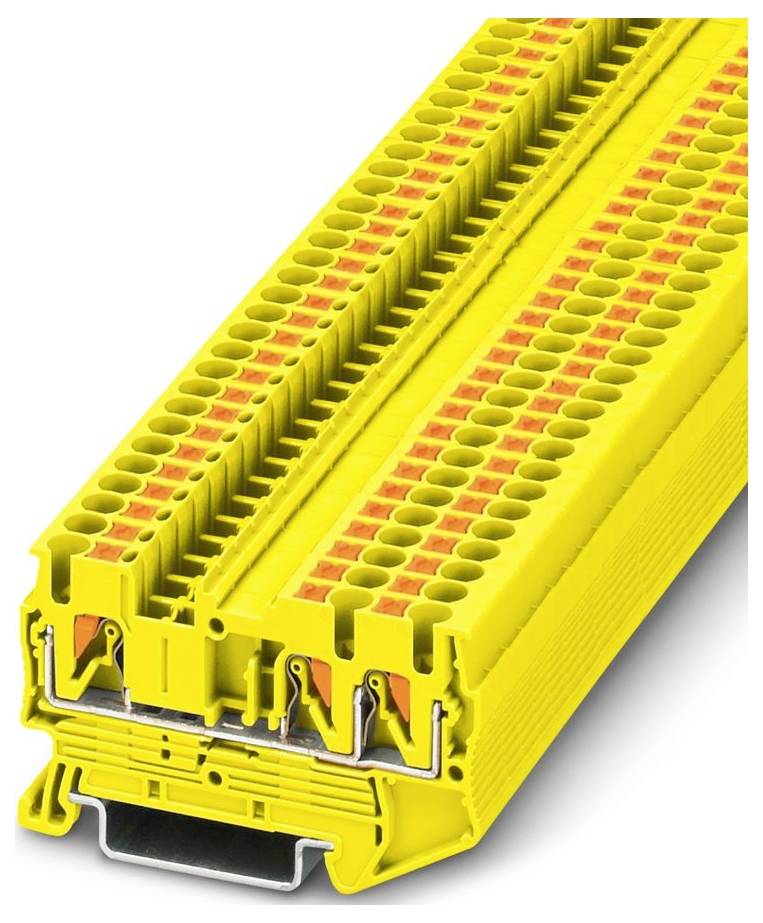

Phoenix Contact 3209553 Continuity Push-in spring-loaded terminal Yellow 50 pc(s) Piece
Packaging type
Piece
Product type
Continuity
Connection
Push-in spring-loaded terminal
Cross section (flexible) (max.)
4 mm²
Cross section (inflexible) (max.)
4 mm²
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
- PT 2,5-TWIN YE
Technical specifications
- Packaging type
Piece
- Product type
Continuity
- Connection
Push-in spring-loaded terminal
- Cross section (flexible) (min.)
0.14 mm²
- Cross section (flexible) (max.)
4 mm²
- Cross section (inflexible) (min.)
0.14 mm²
- Cross section (inflexible) (max.)
4 mm²
- Factory colour
Yellow
- Nominal current
24 A
- Nominal current - rounded value
24 A
- Nominal voltage
800 V
- Manufacturer part #
3209553
- Content
50 pc(s)
- Type
PT 2,5-TWIN YE
- Dim
(W x H x D) 5.2 x 60.5 x 35.3 mm
- Width
5.2 mm
- Height
60.5 mm
- Flammability rating
V0
- Depth
35.3 mm
- UKCA
yes
