Name: Phoenix Contact 3209607 Dual port terminal Push-in connector Red 50 pc(s) Piece
Brand: Phoenix Contact
SKU: 2225897

A red, complex plastic multi-pin connector with several slots and metal contacts, used for establishing electrical connections.

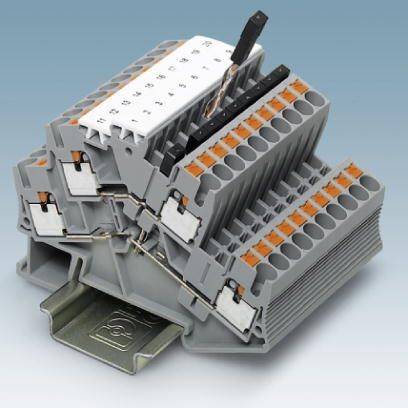

Multi-layer grey terminal block with removable white terminal strips on a metal rail. Suitable for electrical wiring.

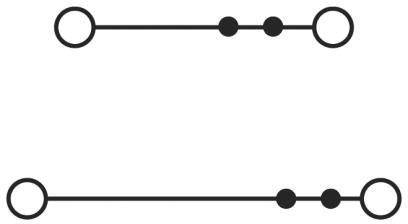

The image shows two horizontal lines with circles at their ends. The upper line has two additional circles along the line, closer to the centre.

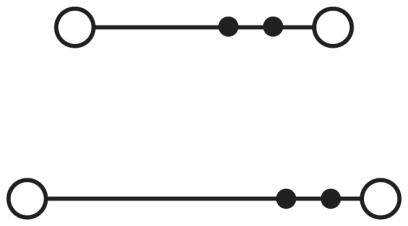

Two parallel lines with three black points, one line at the top with points in the middle, the other line at the bottom with points at the end.

1/5

Image similar

Packaging type

Piece

Product type

Dual port terminal

Connection

Push-in connector

Cross section (flexible) (max.)

4 mm²

Cross section (inflexible) (max.)

4 mm²

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Number of ports: 4
Nominal cross-section 2.5 mm²
Dimensioning surge voltage: 6 kV
Over voltage category III
Insulating material group: I
Maximum load current 24 A (at 4 mm² conductor cross-section rigid)
Open side wall: Yes

Packaging type: Piece

Product type: Dual port terminal

Features: + test option

Connection: Push-in connector

Cross section (flexible) (min.): 0.14 mm²

Cross section (flexible) (max.): 4 mm²

Cross section (inflexible) (min.): 0.14 mm²

Cross section (inflexible) (max.): 4 mm²

AWG (min.): 26

AWG max.: 12

No. of rows: 2

Factory colour: Red

Nominal current: 22 A

Nominal current - rounded value: 22 A

Nominal voltage: 500 V

Min. stripping length: 8 mm

Stripping length (max.): 10 mm

Manufacturer part #: 3209607

Content: 50 pc(s)

Type: PTTBS 2,5 RD

Dim: (L x W) 78 mm x 5.2 mm

Width: 5.2 mm

Length: 78 mm

Rated surge voltage: 6 kV

Flammability rating: V0

Connector colour: Red

Insulation material: PA

Insulation: PA

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2225897 Phoenix Contact 3209607 Dual port terminal Push-in connector Red 50 pc(s) Piece

User & Safety Instructions

User & Safety Instructions 2225897 Phoenix Contact 3209607 Dual port terminal Push-in connector Red 50 pc(s) Piece

Description

In addition to the system features of the CLIPLINE complete system, the push-in connection terminals are characterized by simple and tool-free wiring of conductors with ferrules or rigid conductors. The compact design and the front connection enable wiring in the smallest possible space. In addition to the test option in the double function slot, an additional test tap is available for all terminals.

This text is machine translated.
