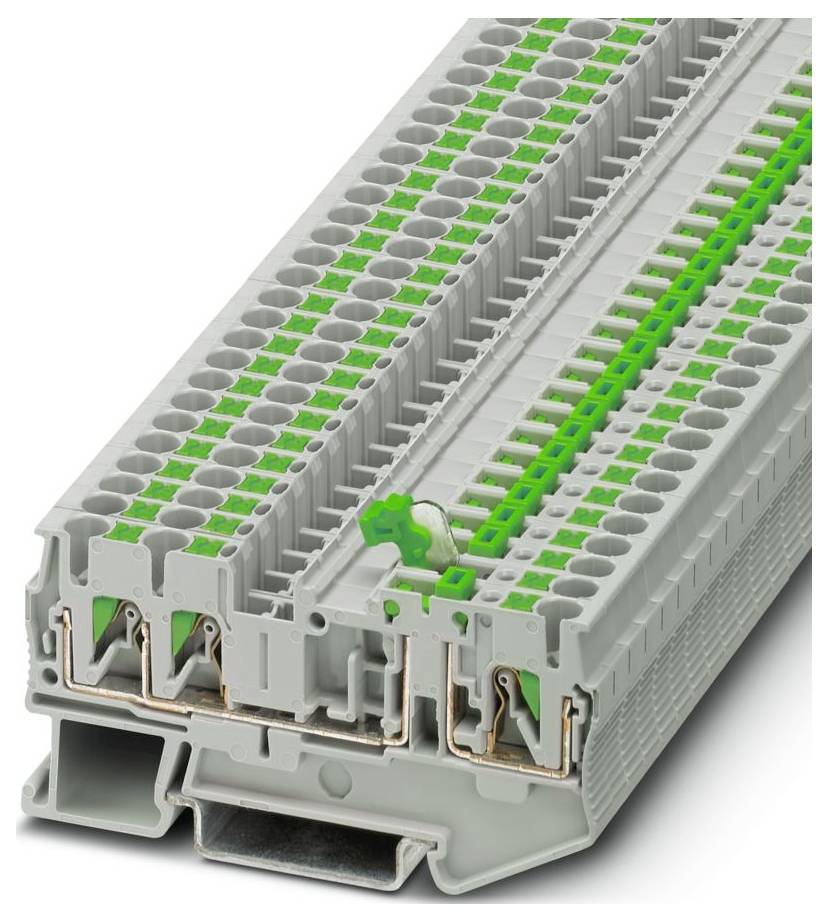

Phoenix Contact 3210176 Disconnect terminal Push-in button Grey 50 pc(s)
Product type
Disconnect terminal
Connection
Push-in button
Cross section (flexible) (max.)
4 mm²
Cross section (inflexible) (max.)
4 mm²
Nominal current - rounded value
20 A
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
- PT 2,5-TWIN-MT-MGN
Technical specifications
- Product type
Disconnect terminal
- Features
+ actuator
- Connection
Push-in button
- Cross section (flexible) (min.)
0.14 mm²
- Cross section (flexible) (max.)
4 mm²
- Cross section (inflexible) (min.)
0.14 mm²
- Cross section (inflexible) (max.)
4 mm²
- Factory colour
Grey
- Nominal current
20 A
- Nominal current - rounded value
20 A
- Nominal voltage
400 V
- Manufacturer part #
3210176
- Content
50 pc(s)
- Type
PT 2,5-TWIN-MT-MGN
- Dim
(W x H x D) 5.2 x 74 x 36.5 mm
- Width
5.2 mm
- Height
74 mm
- Flammability rating
V0
- Depth
36.5 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3581391 Phoenix Contact 3210176 Disconnect terminal Push-in button Grey 50 pc(s)
User & Safety Instructions
User & Safety Instructions 3581391 Phoenix Contact 3210176 Disconnect terminal Push-in button Grey 50 pc(s)
