Name: Phoenix Contact 3210308 Disconnect terminal Push-in connector Grey 50 pc(s) Piece
Brand: Phoenix Contact
SKU: 2225900

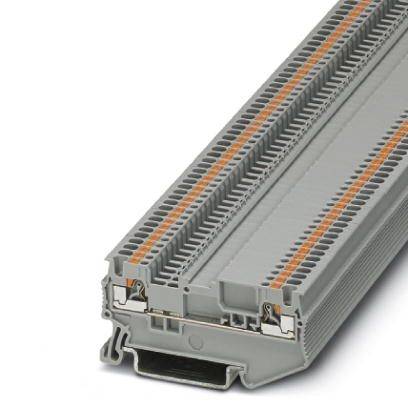

Grey-orange terminal block for electrical connections, showing details of wiring terminals and screw points.

A horizontal line connects two empty circles at the ends with two filled circles in the middle.

1/2

Image similar

Packaging type

Piece

Product type

Disconnect terminal

Connection

Push-in connector

Cross section (flexible) (max.)

1.5 mm²

Cross section (inflexible) (max.)

1.5 mm²

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Number of ports: 2
Potential: 1
Nominal cross-section 1.5 mm²
Dimensioning surge voltage: 6 kV
Over voltage category III
Insulating material group: I
Maximum load current 17.5 A.
Open side wall: Yes
Test specification touch protection: DIN EN 50274 (VDE 0660-514):2002-11
Hand back safety: Guaranteed
Finger safety: Guaranteed
Setpoint: 1 N.
Short time current: 0.18 kA
Lid width 0.8 mm

Packaging type: Piece

Product type: Disconnect terminal

Features: + test option

Connection: Push-in connector

Cross section (flexible) (min.): 0.14 mm²

Cross section (flexible) (max.): 1.5 mm²

Cross section (inflexible) (min.): 0.14 mm²

Cross section (inflexible) (max.): 1.5 mm²

AWG (min.): 26

AWG max.: 14

No. of rows: 1

Factory colour: Grey

Nominal current: 17.5 A

Nominal current - rounded value: 17.5 A

Nominal voltage: 400 V

Min. stripping length: 8 mm

Stripping length (max.): 10 mm

Manufacturer part #: 3210308

Content: 50 pc(s)

Type: PT 1,5/S-MTD

Dim: (L x W x H) 58.9 x 3.5 x 30.5 mm

Width: 3.5 mm

Height: 30.5 mm

Length: 58.9 mm

Rated surge voltage: 6 kV

Contamination level: 3

Flammability rating: V0

Connector colour: Grey

Insulation material: PA

Insulation: PA

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2225900 Phoenix Contact 3210308 Disconnect terminal Push-in connector Grey 50 pc(s) Piece

User & Safety Instructions

User & Safety Instructions 2225900 Phoenix Contact 3210308 Disconnect terminal Push-in connector Grey 50 pc(s) Piece

Description

In addition to the system features of the CLIPLINE complete system, the push-in connection terminals are characterized by simple and tool-free wiring of conductors with ferrules or rigid conductors. The compact design and the front connection enable wiring in the smallest possible space. In addition to the test option in the double function slot, an additional test tap is available for all terminals.
