Name: Phoenix Contact 3210401 Disconnect terminal Push-in connector Blue 50 pc(s) Piece
Brand: Phoenix Contact
SKU: 2225902

A multi-stage terminal block in blue, green and orange, showing electrical connection points for switchboard cable management.

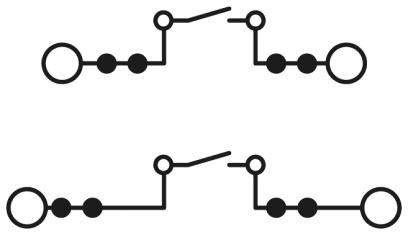

Circuit diagram with two switches and connecting lines to circles. Each switch connects three circles arranged in a line.

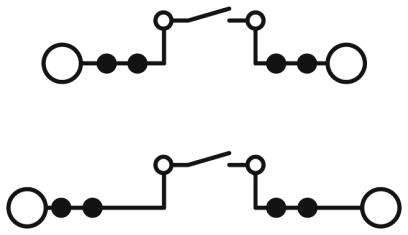

Electrical circuit diagram with two circuits: A switch at the top and bottom, each connected by two linking conductors.

1/3

Image similar

Packaging type

Piece

Product type

Disconnect terminal

Connection

Push-in connector

Cross section (flexible) (max.)

4 mm²

Cross section (inflexible) (max.)

4 mm²

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Disconnect terminal

PTTBS 2,5-2MTB BU

Technical specifications

Ambient temperature (operation): -60 °C ... 130 °C
Number of ports: 4
Potential: 2
Nominal cross-section 2.5 mm²
Dimensioning surge voltage: 6 kV
Over voltage category III
Insulating material group: I
Maximum load current: 16 A (at 4 mm² conductor cross-section rigid)
Open side wall: Yes

Packaging type: Piece

Product type: Disconnect terminal

Features: + test option

Connection: Push-in connector

Cross section (flexible) (min.): 0.14 mm²

Cross section (flexible) (max.): 4 mm²

Cross section (inflexible) (min.): 0.14 mm²

Cross section (inflexible) (max.): 4 mm²

AWG (min.): 26

AWG max.: 12

No. of rows: 2

Number of pins: 4

Factory colour: Blue

Nominal current: 16 A

Nominal current - rounded value: 16 A

Nominal voltage: 400 V

Min. stripping length: 8 mm

Stripping length (max.): 10 mm

Manufacturer part #: 3210401

Content: 50 pc(s)

Type: PTTBS 2,5-2MTB BU

Dim: (L x W x H) 127.5 x 5.2 x 63.1 mm

Width: 5.2 mm

Height: 63.1 mm

Length: 127.5 mm

Rated surge voltage: 6 kV

Contamination level: 3

Flammability rating: V0

Connector colour: Blue

Insulation material: PA

Insulation: PA

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2225902 Phoenix Contact 3210401 Disconnect terminal Push-in connector Blue 50 pc(s) Piece

User & Safety Instructions

User & Safety Instructions 2225902 Phoenix Contact 3210401 Disconnect terminal Push-in connector Blue 50 pc(s) Piece

Description

In addition to the system features of the CLIPLINE complete system, the push-in connection terminals are characterized by simple and tool-free wiring of conductors with ferrules or rigid conductors. The compact design and the front connection enable wiring in the smallest possible space. In addition to the test option in the double function slot, an additional test tap is available for all terminals.
