Name: Phoenix Contact 3211848 Dual port terminal Push-in connector Grey 50 pc(s) Piece
Brand: Phoenix Contact
SKU: 2225913

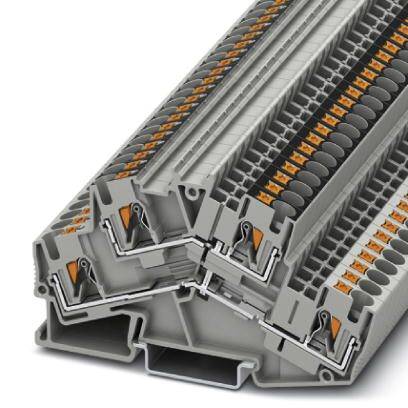

Electrical terminals in pyramid-shaped configuration on a white background. The terminals are stacked, displaying connection points and conductive pathways.

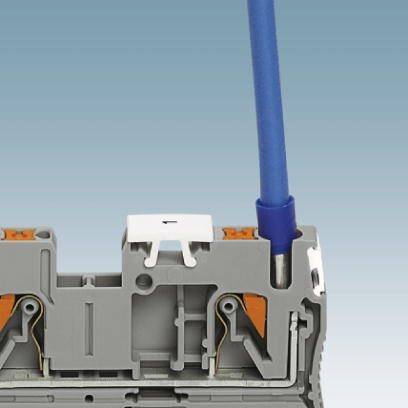

A grey terminal block with a blue wire connected, showing the wire fastening in the terminal.

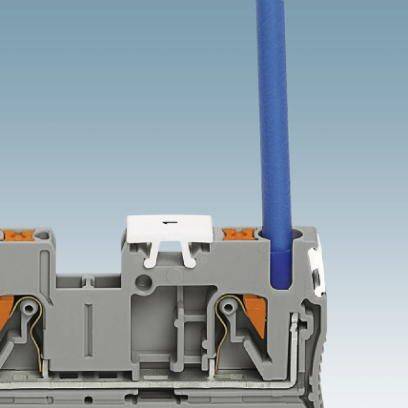

Electrical terminal block with blue cable, showing the cable connection on an electrical junction block in close-up.

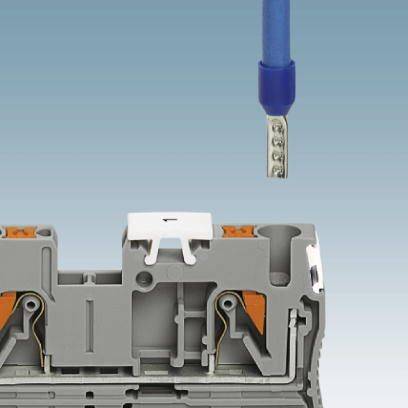

Electrical connection block with a blue wire plug inserted from the top.

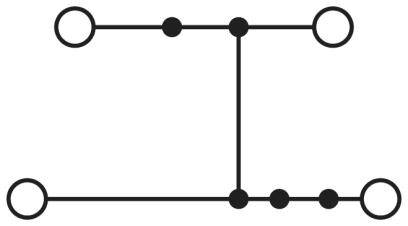

Diagram with lines and circles shows a network or a schematic representation of connections and nodes.

1/5

Image similar

Packaging type

Piece

Product type

Dual port terminal

Connection

Push-in connector

Cross section (flexible) (max.)

6 mm²

Cross section (inflexible) (max.)

6 mm²

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Two-level terminal block

PTTBS 4-PV

Technical specifications

Number of ports: 4
Nominal cross-section: 4 mm²
Dimensioning surge voltage: 8 kV
Over voltage category III
Insulating material group: I
Maximum load current: 28 A (at 6 mm² conductor cross-section rigid)
Open side wall: Yes
Test specification touch protection: DIN EN 50274 (VDE 0660-514):2002-11
Hand back safety: Guaranteed
Finger safety: Guaranteed
Setpoint: 1 N.
Short time current: 0.48 kA

Packaging type: Piece

Product type: Dual port terminal

Features: + test option

Connection: Push-in connector

Cross section (flexible) (min.): 0.2 mm²

Cross section (flexible) (max.): 6 mm²

Cross section (inflexible) (min.): 0.2 mm²

Cross section (inflexible) (max.): 6 mm²

AWG (min.): 24

AWG max.: 10

No. of rows: 2

Number of pins: 4

Factory colour: Grey

Nominal current: 28 A

Nominal current - rounded value: 28 A

Nominal voltage: 800 V

Min. stripping length: 10 mm

Stripping length (max.): 12 mm

Manufacturer part #: 3211848

Content: 50 pc(s)

Type: PTTBS 4-PV

Dim: (L x W) 96 mm x 6.2 mm

Width: 6.2 mm

Length: 96 mm

Rated surge voltage: 8 kV

Contamination level: 3

Flammability rating: V0

Connector colour: Grey

Insulation material: PA

Insulation: PA

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2225913 Phoenix Contact 3211848 Dual port terminal Push-in connector Grey 50 pc(s) Piece

User & Safety Instructions

User & Safety Instructions 2225913 Phoenix Contact 3211848 Dual port terminal Push-in connector Grey 50 pc(s) Piece

Description

In addition to the system features of the CLIPLINE complete system, the push-in connection terminals are characterized by simple and tool-free wiring of conductors with ferrules or rigid conductors. The compact design and the front connection enable wiring in the smallest possible space. In addition to the test option in the double function slot, an additional test tap is available for all terminals.
