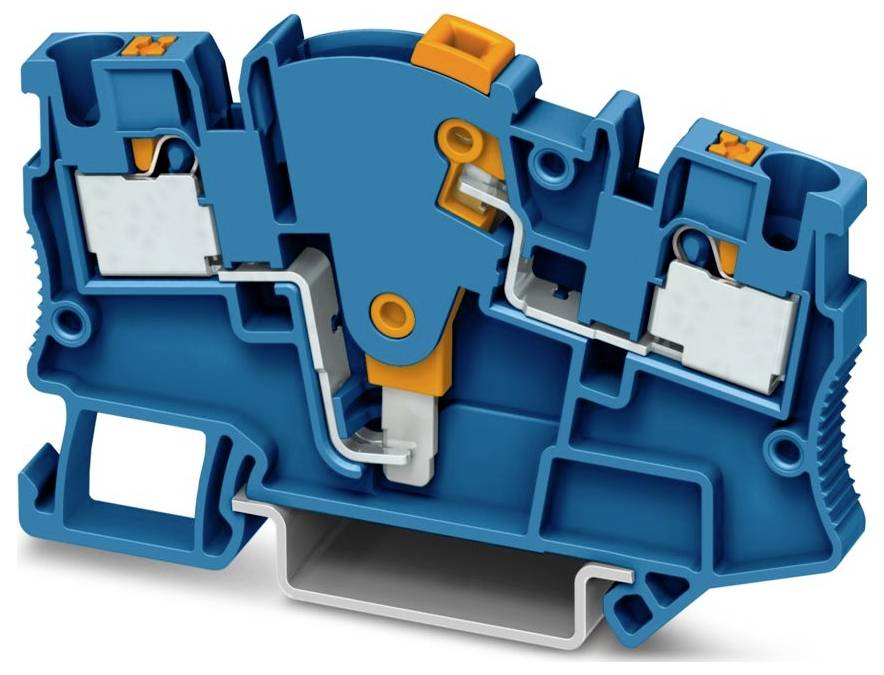

Phoenix Contact 3212148 Sensor offset N terminal Push-in connector Blue 50 pc(s)
Product type
Sensor offset N terminal
Connection
Push-in connector
Cross section (flexible) (max.)
4 mm²
Cross section (inflexible) (max.)
6 mm²
Nominal current - rounded value
24 A
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Sensor offset N terminal
- Connection
Push-in connector
- Cross section (flexible) (min.)
0.2 mm²
- Cross section (flexible) (max.)
4 mm²
- Cross section (inflexible) (min.)
0.2 mm²
- Cross section (inflexible) (max.)
6 mm²
- Factory colour
Blue
- Nominal current
24 A
- Nominal current - rounded value
24 A
- Nominal voltage
500 V
- Manufacturer part #
3212148
- Content
50 pc(s)
- Type
PTME 4 BU
- Dim
(W x H x D) 6.2 x 70.5 x 48.8 mm
- Width
6.2 mm
- Height
70.5 mm
- Flammability rating
V0
- Depth
48.8 mm
- UKCA
yes
