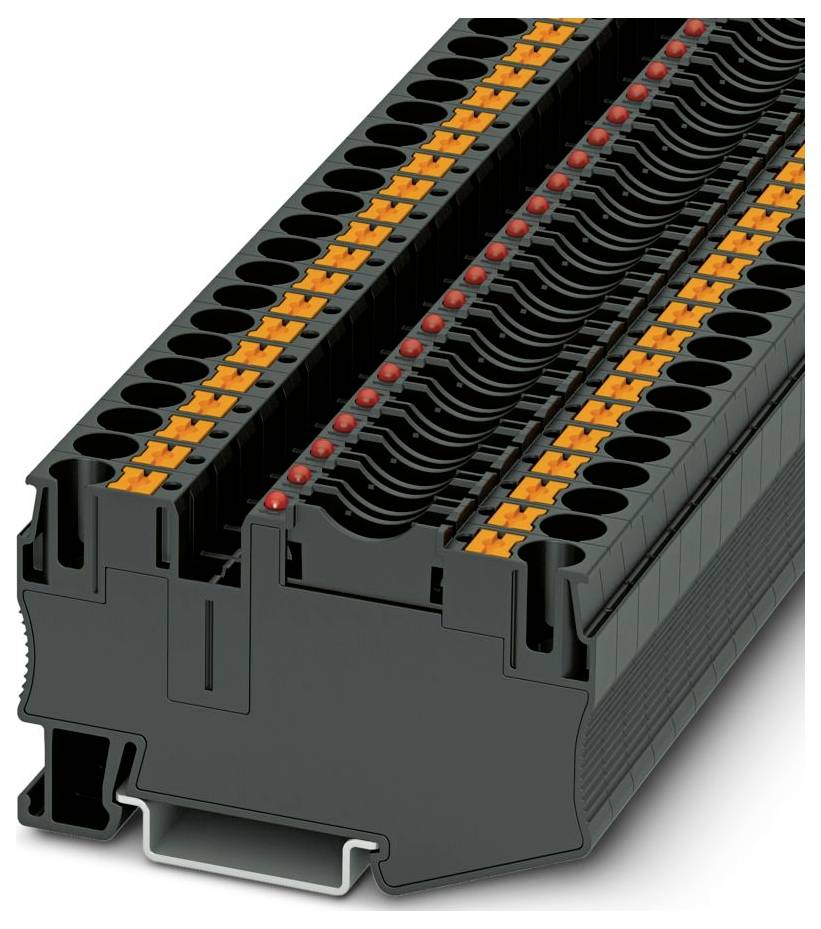

Image similar
Phoenix Contact 3212175 Fuse serial terminal 8.15 mm Push-in connector Black 1 pc(s) Piece
Packaging type
Piece
Product type
Fuse serial terminal
Connection
Push-in connector
Cross section (flexible) (max.)
6 mm²
Cross section (inflexible) (max.)
10 mm²
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Packaging type
Piece
- Product type
Fuse serial terminal
- Connection
Push-in connector
- Cross section (flexible) (min.)
0.5 mm²
- Cross section (flexible) (max.)
6 mm²
- Cross section (inflexible) (min.)
0.5 mm²
- Cross section (inflexible) (max.)
10 mm²
- Clamp width
8.15 mm
- No. of rows
1
- Factory colour
Black
- Nominal current
25 A
- Nominal current - rounded value
25 A
- Nominal voltage
48 V
- Manufacturer part #
3212175
- Content
1 pc(s)
- Type
PT 6-FSI/C-LED 48
- Dim
(L x W x H) 74.125 x 8.15 x 74.125 mm
- Width
8.15 mm
- Height
74.125 mm
- Length
74.125 mm
- Flammability rating
V0
- Depth
44.05 mm
- UKCA
yes
