Name: Phoenix Contact 3212201 Continuity Push-in connector Blue 50 pc(s) Piece
Brand: Phoenix Contact
SKU: 2225927

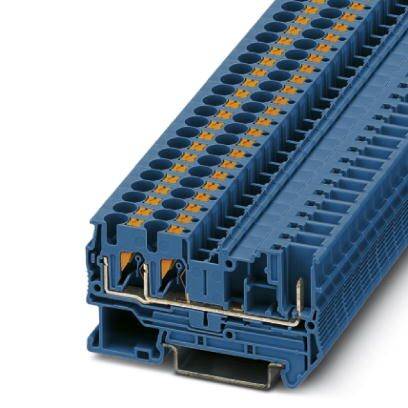

A blue terminal block with multiple connection points for electrical wiring, showing sockets and terminals in detail.

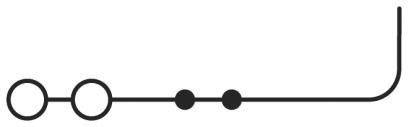

A simple diagram shows a horizontal line with two black and one white dot at the beginning, which bends upwards at the end.

Abstract, minimalist graphic with a curved line, two white and two black circles marking points.

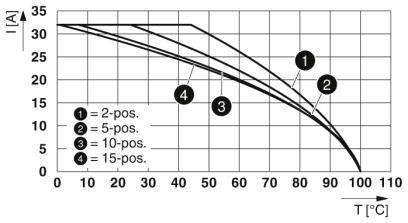

'Current I[A] against Temperature T[°C], curves show four different Pos=Positions: 2, 5, 10, 15. With increasing temperature, the current decreases.'

1/4

Image similar

Packaging type

Piece

Product type

Continuity

Connection

Push-in connector

Cross section (flexible) (max.)

6 mm²

Cross section (inflexible) (max.)

6 mm²

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Ambient temperature (operation): -40 °C ... 100 °C
Number of ports: 3
Potential: 1
Nominal cross-section: 4 mm²
Dimensioning surge voltage: 8 kV
Over voltage category III
Insulating material group: I
Maximum load current: 32 A (at 6 mm² conductor cross-section rigid)
Open side wall: Yes
Setpoint: 1 N.
Short time current: 0.48 kA
Cover width 2.2 mm

Packaging type: Piece

Product type: Continuity

Features: + push-in spring bracket

Connection: Push-in connector

Cross section (flexible) (min.): 0.2 mm²

Cross section (flexible) (max.): 6 mm²

Cross section (inflexible) (min.): 0.2 mm²

Cross section (inflexible) (max.): 6 mm²

AWG (min.): 24

AWG max.: 10

No. of rows: 1

Factory colour: Blue

Nominal current: 32 A

Nominal current - rounded value: 32 A

Nominal voltage: 800 V

Min. stripping length: 10 mm

Stripping length (max.): 12 mm

Manufacturer part #: 3212201

Content: 50 pc(s)

Type: PT 4-TWIN/1P BU

Dim: (L x W) 66.4 mm x 6.2 mm

Width: 6.2 mm

Length: 66.4 mm

Rated surge voltage: 8 kV

Contamination level: 3

Flammability rating: V0

Connector colour: Blue

Insulation material: PA

Insulation: PA

UKCA: yes

Variants(All information is without VAT, plus shipping costs)

Nominal current - rounded value

Connection

Factory colour

Content

Cross section (inflexible) (max.)

Cross section (flexible) (max.)

Cross section (inflexible) (min.)

Cross section (flexible) (min.)

Phoenix Contact 3212201 Continuity Push-in connector Blue 50 pc(s) Piece

Item no:2225927

Unavailable

Conrad Electronic

This article

32 A

Push-in connector

Blue

50 pc(s)

6 mm²

0.2 mm²

Piece(s)

Minimum order quantity: 1

Multiple: 1

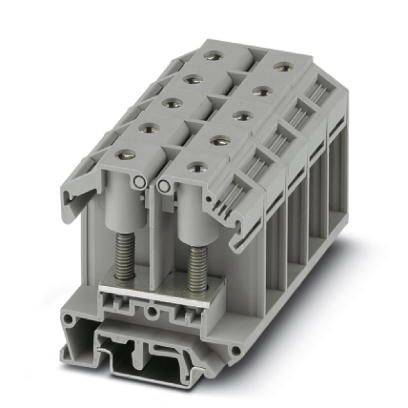

Phoenix Contact 0713122 Continuity 18 mm Bolt fixings Grey 1 pc(s) Piece

Item no:2208749

Unavailable

Conrad Electronic

101 A

Bolt fixings

Grey

1 pc(s)

25 mm²

1.5 mm²

Piece(s)

Minimum order quantity: 1

Multiple: 1

Phoenix Contact 1037082 Continuity Push-in connector Black 50 pc(s) Piece

Item no:2209006

Unavailable

Conrad Electronic

24 A

Push-in connector

Black

50 pc(s)

4 mm²

0.14 mm²

Piece(s)

Minimum order quantity: 1

Multiple: 1

Phoenix Contact 1037083 Continuity Push-in connector Red 50 pc(s) Piece

Item no:2209007

Unavailable

Conrad Electronic

24 A

Push-in connector

Red

50 pc(s)

4 mm²

0.14 mm²

Piece(s)

Minimum order quantity: 1

Multiple: 1

Phoenix Contact 1037084 Continuity Push-in connector Yellow 50 pc(s) Piece

Item no:2209008

Unavailable

Conrad Electronic

24 A

Push-in connector

Yellow

50 pc(s)

4 mm²

0.14 mm²

Piece(s)

Minimum order quantity: 1

Multiple: 1

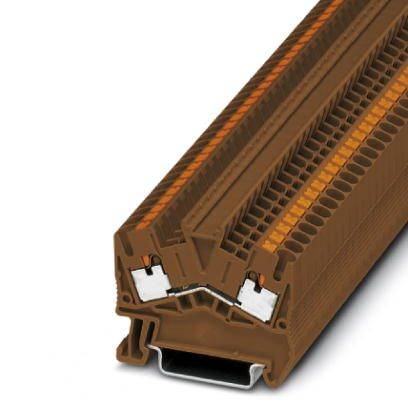

Phoenix Contact 1037085 Continuity Push-in connector Brown 50 pc(s) Piece

Item no:2209009

Unavailable

Conrad Electronic

24 A

Push-in connector

Brown

50 pc(s)

4 mm²

0.14 mm²

Piece(s)

Minimum order quantity: 1

Multiple: 1

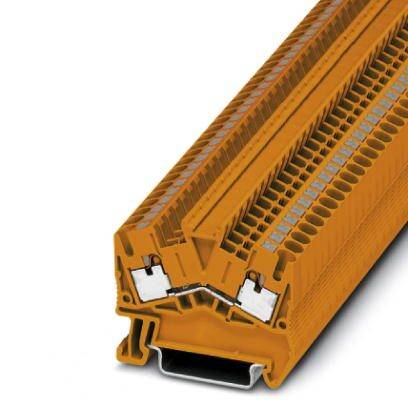

Phoenix Contact 1037086 Continuity Push-in connector Orange 50 pc(s) Piece

Item no:2209010

Unavailable

Conrad Electronic

24 A

Push-in connector

Orange

50 pc(s)

4 mm²

0.14 mm²

Piece(s)

Minimum order quantity: 1

Multiple: 1

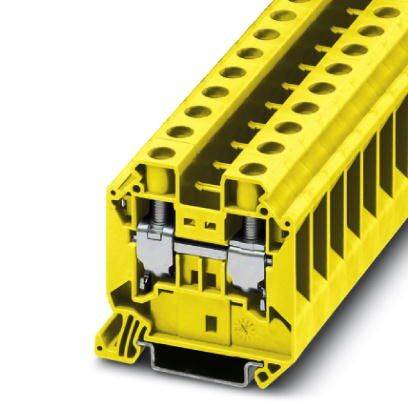

Phoenix Contact 3044198 Continuity 2.2 mm Screws Yellow 50 pc(s) Piece

Item no:2225858

Unavailable

Conrad Electronic

76 A

Screws

Yellow

50 pc(s)

25 mm²

1.5 mm²

Piece(s)

Minimum order quantity: 1

Multiple: 1

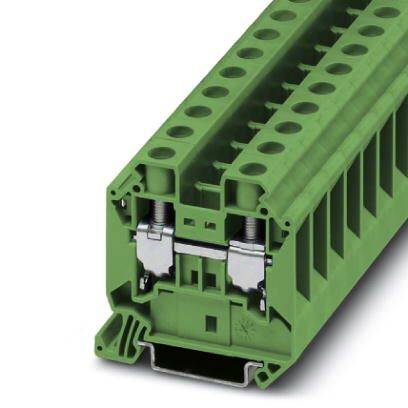

Phoenix Contact 3044211 Continuity Screws Green 50 pc(s) Piece

Item no:2225859

Unavailable

Conrad Electronic

76 A

Screws

Green

50 pc(s)

25 mm²

1.5 mm²

Piece(s)

Minimum order quantity: 1

Multiple: 1

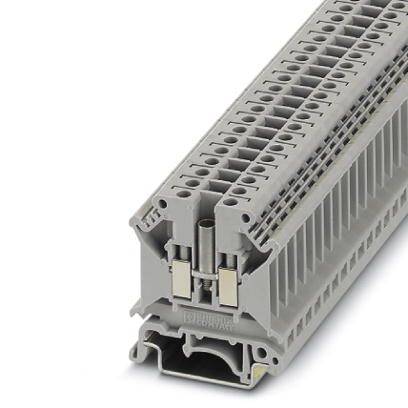

Phoenix Contact 3048441 Continuity Screws Grey 50 pc(s) Piece

Item no:2225865

Unavailable

Conrad Electronic

32 A

Screws

Grey

50 pc(s)

6 mm²

4 mm²

0.2 mm²

Piece(s)

Minimum order quantity: 1

Multiple: 1

Documents & Downloads

Datasheet

Datasheet 2225927 Phoenix Contact 3212201 Continuity Push-in connector Blue 50 pc(s) Piece

User & Safety Instructions

User & Safety Instructions 2225927 Phoenix Contact 3212201 Continuity Push-in connector Blue 50 pc(s) Piece

Description

In addition to the system features of the CLIPLINE complete system, the push-in connection terminals are characterized by simple and tool-free wiring of conductors with ferrules or rigid conductors. The compact design and the front connection enable wiring in the smallest possible space. In addition to the test option in the double function slot, an additional test tap is available for all terminals.

This text is machine translated.
