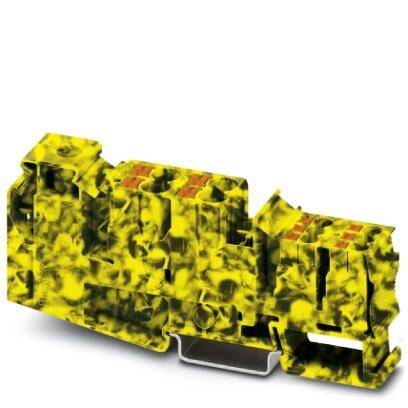

Phoenix Contact 3214082 PD terminal block Screws Black, Yellow 20 pc(s) Piece
Packaging type
Piece
Product type
PD terminal block
Connection
Screws
Cross section (flexible) (max.)
50 mm²
Cross section (inflexible) (max.)
50 mm²
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Potential terminal

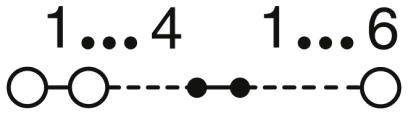

- PTU 35/4X6/6X2,5-FE
Technical specifications
- Number of connections: 11
- Over voltage category III
- Insulating material group: I
- Maximum load current: 105 A (the maximum load current must not be exceeded by the total current of all connected conductors.)
- Open side wall: No.
- Test specification touch protection: DIN EN 50274 (VDE 0660-514):2002-11
- Hand back safety: Guaranteed
- Finger safety: Guaranteed
- Setpoint: 10 N.
- Time current: 3 kA
- Screw thread: M6
- Tightening torque max. 3.7 Nm
- Packaging type
Piece
- Product type
PD terminal block
- Features
Industrial-grade (w/o tools)
- Connection
Screws
- Cross section (flexible) (min.)
1.5 mm²
- Cross section (flexible) (max.)
50 mm²
- Cross section (inflexible) (min.)
1.5 mm²
- Cross section (inflexible) (max.)
50 mm²
- AWG (min.)
16
- No. of rows
1
- Number of pins
11
- Factory colour
Black
Yellow
- Nominal current
105 A
- Nominal current - rounded value
105 A
- Nominal voltage
1000 V
- Stripping length (max.)
18 mm
- Manufacturer part #
3214082
- Content
20 pc(s)
- Type
PTU 35/4X6/6X2,5-FE
- Dim
(L x W) 110.4 mm x 16.3 mm
- Width
16.3 mm
- Length
110.4 mm
- Contamination level
2
- Flammability rating
V0
- Connector colour
Black
- Insulation material
PA
- Insulation
PA
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2225936 Phoenix Contact 3214082 PD terminal block Screws Black, Yellow 20 pc(s) Piece
Datasheet 2225936 Phoenix Contact 3214082 PD terminal block Screws Black, Yellow 20 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 2225936 Phoenix Contact 3214082 PD terminal block Screws Black, Yellow 20 pc(s) Piece
Description
In addition to the system features of the CLIPLINE complete system, the push-in connection terminals are characterized by simple and tool-free wiring of conductors with ferrules or rigid conductors. The compact design and the front connection enable wiring in the smallest possible space. In addition to the test option in the double function slot, an additional test tap is available for all terminals.
