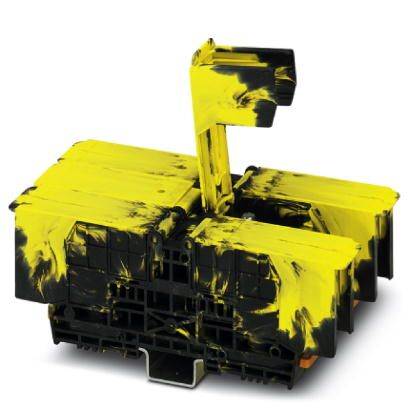

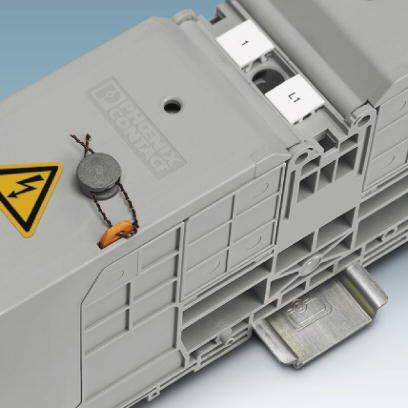

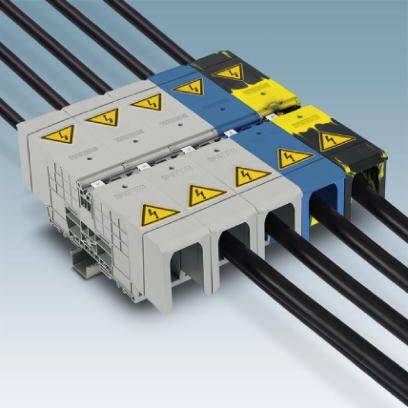

Phoenix Contact 3247975 Bolt terminal 22 mm Bolt fixings Black, Yellow 5 pc(s) Piece
Packaging type
Piece
Product type
Bolt terminal
Connection
Bolt fixings
Cross section (flexible) (max.)
70 mm²
Cross section (inflexible) (max.)
70 mm²
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Number of ports: 2
- Potential: 1
- Nominal cross-section 70 mm²
- Dimensioning surge voltage: 8 kV
- Over voltage category III
- Insulating material group: I
- Maximum load current: 192 A (at 70 mm² conductor cross-section, the maximum load current must not be exceeded by the total current of all connected conductors.)
- Open side wall: No.
- Test specification touch protection: DIN EN 50274 (VDE 0660-514):2002-11
- Hand back safety: Guaranteed
- Finger safety: Guaranteed
- Setpoint: 10 N.
- Time current: 8.4 kA
- Screw thread: M8
- Tightening torque max. 12 Nm
- Cross section cable lug connection max.: 70 mm²
- Max. Cable lug width 22 mm
- Pitch: 29 mm
- Packaging type
Piece
- Product type
Bolt terminal
- Connection
Bolt fixings
- Cross section (flexible) (min.)
6 mm²
- Cross section (flexible) (max.)
70 mm²
- Cross section (inflexible) (min.)
6 mm²
- Cross section (inflexible) (max.)
70 mm²
- AWG (min.)
8
- Clamp width
22 mm
- No. of rows
1
- Number of pins
1
- Factory colour
Black
Yellow
- Nominal current
192 A
- Nominal current - rounded value
192 A
- Nominal voltage
1500 V
- Manufacturer part #
3247975
- Content
5 pc(s)
- Type
RBO 8-FE-HC
- Dim
(L x W x H) 184 x 29 x 66 mm
- Width
29 mm
- Height
66 mm
- Length
184 mm
- Rated surge voltage
8 kV
- Contamination level
3
- Flammability rating
V0
- Connector colour
Black
- Insulation material
PA
- Insulation
PA
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2226014 Phoenix Contact 3247975 Bolt terminal 22 mm Bolt fixings Black, Yellow 5 pc(s) Piece
Datasheet 2226014 Phoenix Contact 3247975 Bolt terminal 22 mm Bolt fixings Black, Yellow 5 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 2226014 Phoenix Contact 3247975 Bolt terminal 22 mm Bolt fixings Black, Yellow 5 pc(s) Piece
Description
Tested for railway applications.
