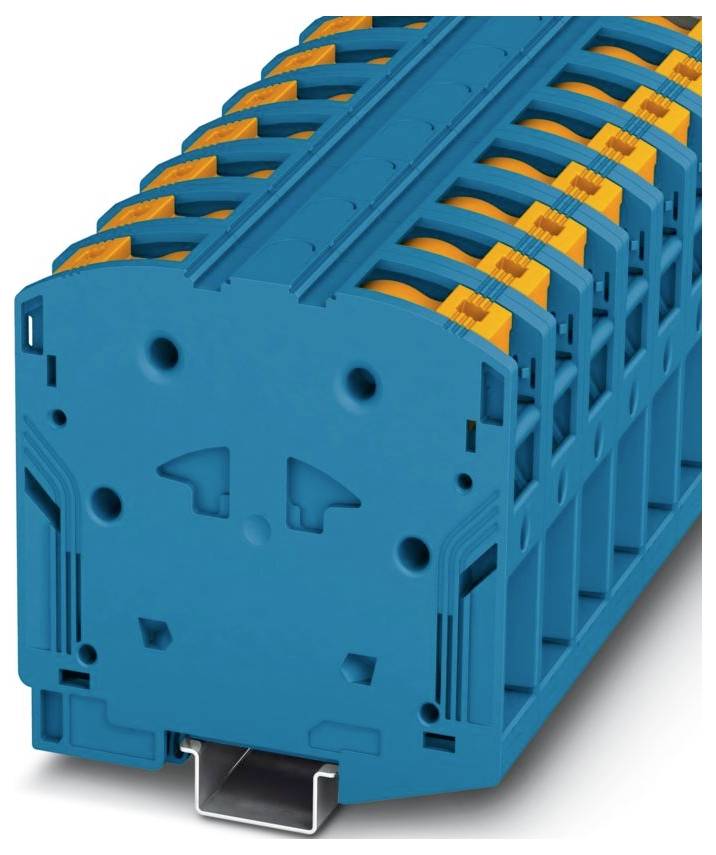

Image similar
Phoenix Contact 3260103 High power terminal Blue 3 pc(s)
Product type
High power terminal
Cross section (flexible) (max.)
95 mm²
Cross section (inflexible) (max.)
95 mm²
Nominal current - rounded value
232 A
Content
3 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
- PTPOWER 95 BU
Technical specifications
- Product type
High power terminal
- Features
built-in jumper
- Cross section (flexible) (min.)
25 mm²
- Cross section (flexible) (max.)
95 mm²
- Cross section (inflexible) (min.)
25 mm²
- Cross section (inflexible) (max.)
95 mm²
- Pins per row
1
- Number of pins
1
- Factory colour
Blue
- Nominal current
232 A
- Nominal current - rounded value
232 A
- Nominal voltage
1000 V
- Manufacturer part #
3260103
- Content
3 pc(s)
- Type
PTPOWER 95 BU
- Dim
(W x H x D) 25 x 105.5 x 108.7 mm
- Width
25 mm
- Height
105.5 mm
- Flammability rating
V0
- Depth
108.7 mm
- UKCA
yes
