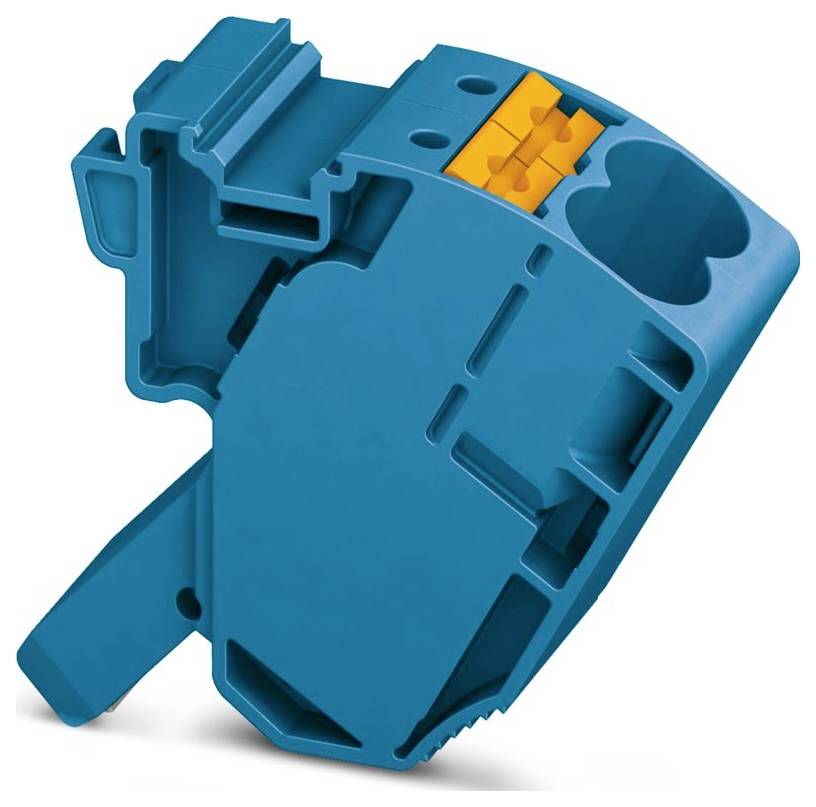

Phoenix Contact 3260148 Clip terminal Push-in connector Blue 10 pc(s) Piece
Packaging type
Piece
Product type
Clip terminal
Connection
Push-in connector
Cross section (flexible) (max.)
10 mm²
Cross section (inflexible) (max.)
16 mm²
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Packaging type
Piece
- Product type
Clip terminal
- Connection
Push-in connector
- Cross section (flexible) (min.)
0.5 mm²
- Cross section (flexible) (max.)
10 mm²
- Cross section (inflexible) (min.)
0.5 mm²
- Cross section (inflexible) (max.)
16 mm²
- Factory colour
Blue
- Nominal current
57 A
- Nominal current - rounded value
57 A
- Nominal voltage
1500 V
- Manufacturer part #
3260148
- Content
10 pc(s)
- Type
AGK 10-PTPOWER BU
- Dim
(W x H x D) 17.5 x 46.56081 x 39.15432 mm
- Width
17.5 mm
- Height
46.56081 mm
- Flammability rating
V0
- Depth
39.15432 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3581912 Phoenix Contact 3260148 Clip terminal Push-in connector Blue 10 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 3581912 Phoenix Contact 3260148 Clip terminal Push-in connector Blue 10 pc(s) Piece
