Name: Phoenix Contact 3270424 Shunt terminal array Push-in connector Grey 10 pc(s) Piece
Brand: Phoenix Contact
SKU: 2226033

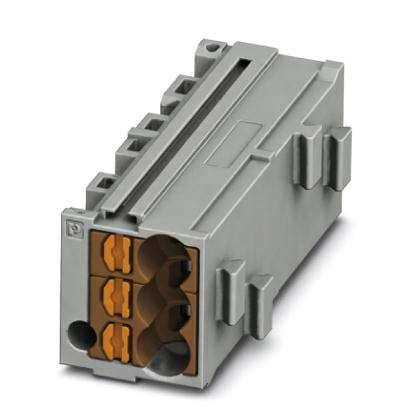

Grey, rectangular electrical connector module with three orange inputs on the front face.

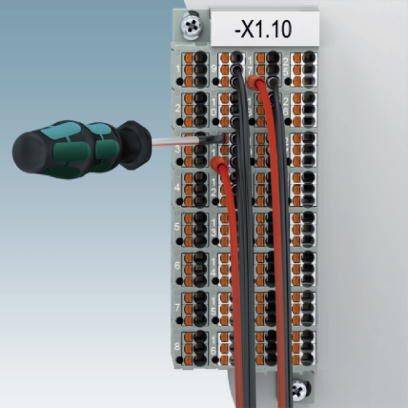

A screwdriver is pulling a black cable from a terminal block labelled '-X1.10'.

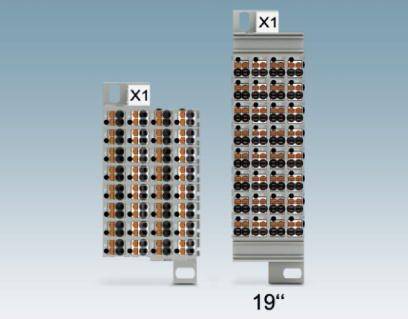

Two electronic components labelled 'X1', in different sizes, on a blue background.

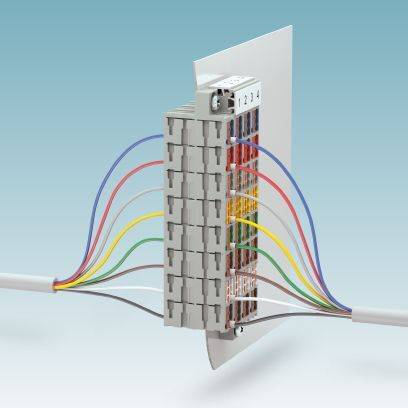

Multi-core cable connected to a distribution block, with each coloured core inserted into its own individual terminal.

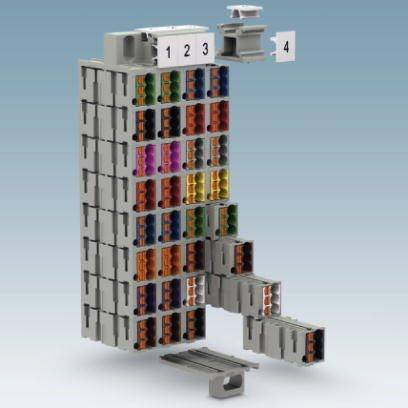

A multi-row electrical connector block with modules of different colours, partially removed to provide insight into its construction.

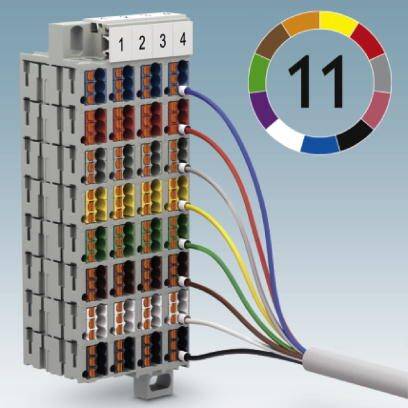

Multi-coloured wiring in an electrical module, numbered terminals 1 to 4. Circle displays the number '11' with a coloured ring.

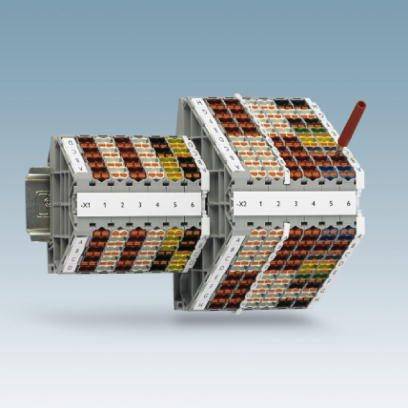

A multi-storey terminal block with colour-coded connections on a DIN rail for electrical wiring and signal processing.

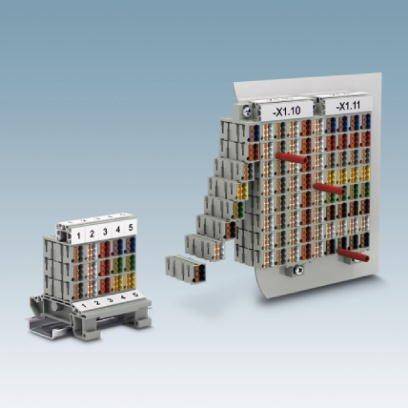

Modular terminal concept with various connection points and numbered labels, showing options for electrical wiring.

A horizontal line with six evenly distributed, equally sized circles.

1/9

Image similar

Packaging type

Piece

Product type

Shunt terminal array

Connection

Push-in connector

Cross section (flexible) (max.)

1.5 mm²

Cross section (inflexible) (max.)

2.5 mm²

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Shunt terminal hub

PTMC 1,5-3 /BK

Technical specifications

Number of ports: 6
Nominal cross-section 1.5 mm²
Dimensioning surge voltage: 6 kV
Over voltage category III
Insulating material group: I
Maximum load current: 24 A (at 2.5 mm² conductor cross-section, the maximum load current must not be exceeded by the total current of all connected conductors.)
Open side wall: No.
Test specification touch protection: DIN EN 50274 (VDE 0660-514):2002-11
Hand back safety: Guaranteed
Finger safety: Guaranteed
Setpoint: 1 N.
Short time current: 0.18 kA

Packaging type: Piece

Product type: Shunt terminal array

Features: + push-in spring bracket

Connection: Push-in connector

Cross section (flexible) (min.): 0.14 mm²

Cross section (flexible) (max.): 1.5 mm²

Cross section (inflexible) (min.): 0.14 mm²

Cross section (inflexible) (max.): 2.5 mm²

AWG (min.): 26

AWG max.: 14

No. of rows: 1

Number of pins: 1

Factory colour: Grey

Nominal current: 17.5 A

Nominal current - rounded value: 17.5 A

Nominal voltage: 500 V

Min. stripping length: 8 mm

Stripping length (max.): 10 mm

Manufacturer part #: 3270424

Content: 10 pc(s)

Type: PTMC 1,5-3 /BK

Dim: (L x W x H) 12.2 x 11 x 30 mm

Width: 11 mm

Height: 30 mm

Length: 12.2 mm

Rated surge voltage: 6 kV

Contamination level: 3

Flammability rating: V0

Connector colour: Black

Insulation material: PA

Insulation: PA

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2226033 Phoenix Contact 3270424 Shunt terminal array Push-in connector Grey 10 pc(s) Piece

User & Safety Instructions

User & Safety Instructions 2226033 Phoenix Contact 3270424 Shunt terminal array Push-in connector Grey 10 pc(s) Piece

Description

High contact quality thanks to push-in technology as a replacement for wire wrap, Termi-Point, etc. Individual color assignment of conductor and clamping point to enable error-free, safe working. Color configuration according to VDE 0812, VDE 0815, DIN 47100 or unlimited. Tool-free wiring in the smallest space thanks to compact size. Individual structure through modular principle. Suitable with appropriate accessories for rail mounting and wall cut-outs.
