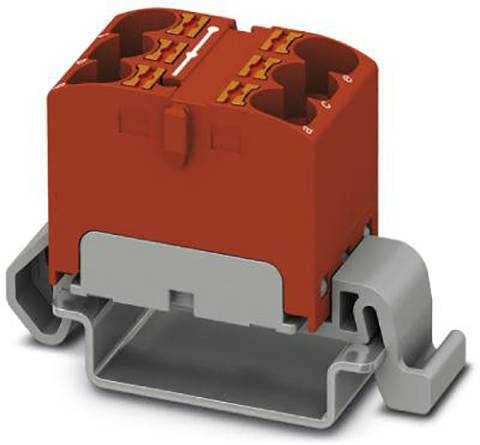

Image similar
Phoenix Contact 3273662 Distribution block Pull spring Red 10 pc(s) Piece
Packaging type
Piece
Product type
Distribution block
Connection
Pull spring
Cross section (flexible) (max.)
6 mm²
Cross section (inflexible) (max.)
6 mm²
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Mounting type NS 35/7.5, NS 35/15
- Packaging type
Piece
- Product type
Distribution block
- Features
low type
- Connection
Pull spring
- Cross section (flexible) (min.)
0.2 mm²
- Cross section (flexible) (max.)
6 mm²
- Cross section (inflexible) (min.)
0.2 mm²
- Cross section (inflexible) (max.)
6 mm²
- AWG (min.)
24
- AWG max.
10
- Factory colour
Red
- Nominal current
32 A
- Nominal current - rounded value
32 A
- Nominal voltage
450 V
- Min. stripping length
10 mm
- Stripping length (max.)
12 mm
- Manufacturer part #
3273662
- Content
10 pc(s)
- Type
PTFIX 6X4-NS35A RD
- Dim
(L x W x H) 45.7 x 18.5 x 30.9 mm
- Width
18.5 mm
- Height
30.9 mm
- Length
45.7 mm
- Contamination level
3
- Flammability rating
V0
- Connector colour
Red
- Insulation material
PA
- Insulation
PA.
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2435804 Phoenix Contact 3273662 Distribution block Pull spring Red 10 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 2435804 Phoenix Contact 3273662 Distribution block Pull spring Red 10 pc(s) Piece
Description
Space-saving thanks to compact design. Flexible use through direct mounting with flange covers made of accessories. Space-saving potential distribution through compact micro potential distributor. Ideal testing possibilities through test openings at each clamping point. Clear thanks to the labeling of all clamping points.
Flexible use through rail mounting, direct mounting or sticking
Clear wiring through eleven different color variants
Time-saving conductor connection through tool-free push-in direct plug technology
Up to 80% time advantage through ready-to-assemble blocks without manual bridging
Up to 50% space saving on the mounting rail through cross-mounting
This text is machine translated.
Flexible use through rail mounting, direct mounting or sticking
Clear wiring through eleven different color variants
Time-saving conductor connection through tool-free push-in direct plug technology
Up to 80% time advantage through ready-to-assemble blocks without manual bridging
Up to 50% space saving on the mounting rail through cross-mounting
This text is machine translated.
