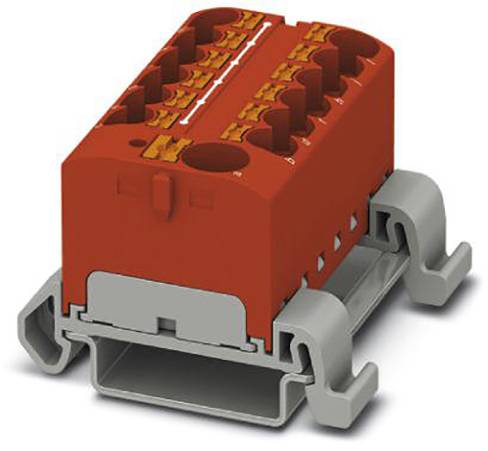

Phoenix Contact 3273750 Distribution block 28.6 mm Pull spring Red 8 pc(s)
Product type
Distribution block
Connection
Pull spring
Cross section (flexible) (max.)
6 mm²
Cross section (inflexible) (max.)
6 mm²
Nominal current - rounded value
32 A
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Distribution block
- Features
+ test option
- Connection
Pull spring
- Cross section (flexible) (min.)
0.2 mm²
- Cross section (flexible) (max.)
6 mm²
- Cross section (inflexible) (min.)
0.2 mm²
- Cross section (inflexible) (max.)
6 mm²
- AWG (min.)
24
- AWG max.
10
- Clamp width
28.6 mm
- No. of rows
1
- Number of pins
13
- Factory colour
Red
- Nominal current
32 A
- Nominal current - rounded value
32 A
- Nominal voltage
800 V
- Min. stripping length
10 mm
- Stripping length (max.)
12 mm
- Manufacturer part #
3273750
- Content
8 pc(s)
- Type
PTFIX 10/12X4-NS35A RD
- Dim
(L x W x H) 45.7 x 46.3 x 30.9 mm
- Width
46.3 mm
- Height
30.9 mm
- Length
45.7 mm
- Flammability rating
V0
- Connector colour
Red
- Insulation material
PA
- UKCA
yes
