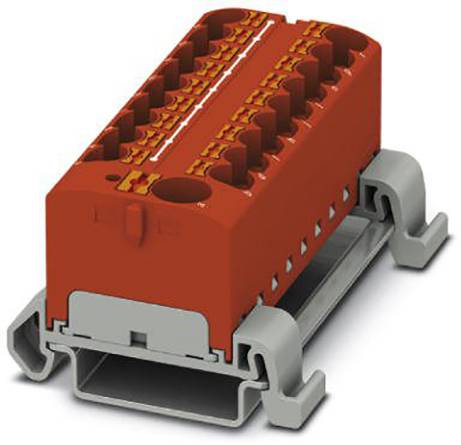

Image similar
Phoenix Contact 3273772 Distribution block Pull spring Red 8 pc(s) Piece
Packaging type
Piece
Product type
Distribution block
Connection
Pull spring
Cross section (flexible) (max.)
6 mm²
Cross section (inflexible) (max.)
6 mm²
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Mounting type NS 35/7.5, NS 35/15
- Packaging type
Piece
- Product type
Distribution block
- Features
NS 32/35 rail mount
- Connection
Pull spring
- Cross section (flexible) (min.)
0.2 mm²
- Cross section (flexible) (max.)
6 mm²
- Cross section (inflexible) (min.)
0.2 mm²
- Cross section (inflexible) (max.)
6 mm²
- AWG (min.)
24
- AWG max.
10
- No. of rows
1
- Number of pins
19
- Factory colour
Red
- Nominal current
32 A
- Nominal current - rounded value
32 A
- Nominal voltage
800 V
- Min. stripping length
10 mm
- Stripping length (max.)
12 mm
- Manufacturer part #
3273772
- Content
8 pc(s)
- Type
PTFIX 10/18X4-NS35A RD
- Dim
(L x W x H) 45.7 x 64.8 x 30.9 mm
- Width
64.8 mm
- Height
30.9 mm
- Length
45.7 mm
- Contamination level
3
- Flammability rating
V0
- Connector colour
Red
- Insulation material
PA
- Insulation
PA.
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2436076 Phoenix Contact 3273772 Distribution block Pull spring Red 8 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 2436076 Phoenix Contact 3273772 Distribution block Pull spring Red 8 pc(s) Piece
Description
Space-saving thanks to compact design. Flexible use through direct mounting with flange covers made of accessories. Space-saving potential distribution through compact micro potential distributor. Ideal testing possibilities through test openings at each clamping point. Clear thanks to the labeling of all clamping points.
