Name: Phoenix Contact 3273790 Grey 10 pc(s)
Brand: Phoenix Contact
SKU: 2226077

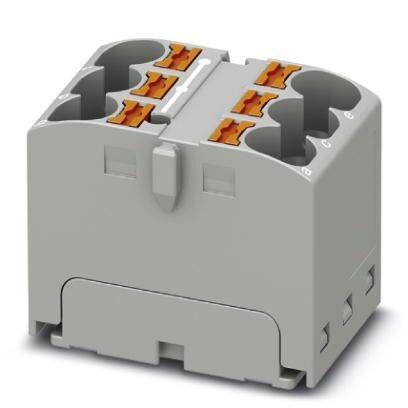

A grey electrical terminal block housing with six contact points and orange levers, used for cable connections.

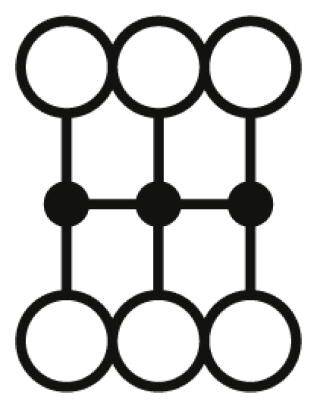

Abstract geometric pattern with nine circles, arranged in three rows and connected by lines.

1/2

Image similar

Factory colour

Grey

AWG max.

Stripping length

10 mm

Stripping length (max.)

12 mm

Dim

(L x W) 28.6 mm x 18.5 mm

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Flammability class according to UL 94: V0
Width 18.5 mm
Number of floors: 1
Number of ports: 6
Potential: 1
Insulating material: PA
Dimensioning surge voltage: 6 kV
Pollution level 3
Over voltage category III
Insulating material group: I
Maximum power loss at rated condition: 1.02 W (the value refers to a terminal block and is multiplied depending on the terminal assignment)
Maximum load current 63 A.
Open side wall: No.
Total current maximum 41 A.

Factory colour: Grey

AWG max.: 10

Stripping length: 10 mm

Stripping length (max.): 12 mm

Dim: (L x W) 28.6 mm x 18.5 mm

Connection: Push-in connector

Connector colour: Grey

Manufacturer part #: 3273790

Content: 10 pc(s)

Clamp width: 18.5 mm

Material: PA

Nominal voltage: 450 V

Nominal current: 32 A

Nominal current - rounded value: 32 A

Width: 18.5 mm

Length: 28.6 mm

Type: PTFIX 6X4 GY

Cross section (flexible) (max.): 4 mm²

Cross section (inflexible) (max.): 6 mm²

Cross section (flexible) (min.): 0.2 mm²

Cross section (inflexible) (min.): 0.2 mm²

UKCA: yes

Variants(All information is without VAT, plus shipping costs)

Nominal current - rounded value

Factory colour

Content

Cross section (inflexible) (max.)

Cross section (flexible) (max.)

Cross section (inflexible) (min.)

Cross section (flexible) (min.)

Phoenix Contact 1045923 Grey 50 pc(s)

Item no:2209020

Fast track dispatch on Tue 20 Oct

5 Set(s)Conrad Electronic

17.5 A

Grey

50 pc(s)

2.5 mm²

1.5 mm²

0.14 mm²

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 37.99^*

Phoenix Contact 1047419 Blue 20 pc(s)

Item no:2209032

Dispatches on Thu 22 Oct

75 Set(s)Conrad Electronic

17.5 A

Blue

20 pc(s)

2.5 mm²

1.5 mm²

0.14 mm²

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 179.99^*

Phoenix Contact 1091668 Green, Yellow 10 pc(s)

Item no:2140985

Fast track dispatch on Tue 20 Oct

2 Set(s)Conrad Electronic

24 A

Green

10 pc(s)

4 mm²

2.5 mm²

0.14 mm²

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 35.99^*

Phoenix Contact 1028067 Grey 50 pc(s)

Item no:2208990

Unavailable

Conrad Electronic

24 A

Grey

50 pc(s)

4 mm²

2.5 mm²

0.14 mm²

Piece(s)

Minimum order quantity: 1

Multiple: 1

Phoenix Contact 1028068 Blue 50 pc(s)

Item no:2208991

Unavailable

Conrad Electronic

24 A

Blue

50 pc(s)

4 mm²

2.5 mm²

0.14 mm²

Piece(s)

Minimum order quantity: 1

Multiple: 1

Phoenix Contact 1028069 Red 50 pc(s)

Item no:2208992

Unavailable

Conrad Electronic

24 A

Red

50 pc(s)

4 mm²

2.5 mm²

0.14 mm²

Piece(s)

Minimum order quantity: 1

Multiple: 1

Phoenix Contact 1028360 Grey 50 pc(s)

Item no:2208993

Unavailable

Conrad Electronic

32 A

Grey

50 pc(s)

6 mm²

4 mm²

0.2 mm²

Piece(s)

Minimum order quantity: 1

Multiple: 1

Phoenix Contact 1045929 Red 50 pc(s)

Item no:2209021

Unavailable

Conrad Electronic

17.5 A

Red

50 pc(s)

2.5 mm²

1.5 mm²

0.14 mm²

Piece(s)

Minimum order quantity: 1

Multiple: 1

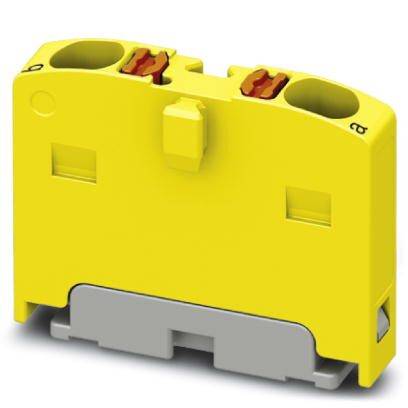

Phoenix Contact 1045931 Yellow 50 pc(s)

Item no:2209022

Unavailable

Conrad Electronic

17.5 A

Yellow

50 pc(s)

2.5 mm²

1.5 mm²

0.14 mm²

Piece(s)

Minimum order quantity: 1

Multiple: 1

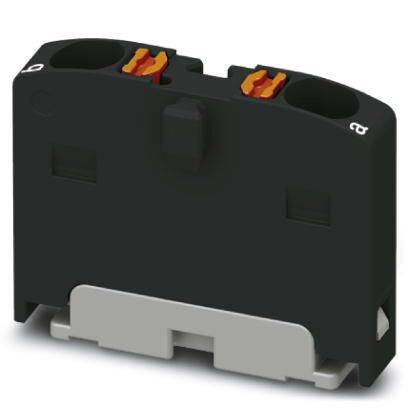

Phoenix Contact 1045937 Black 50 pc(s)

Item no:2209023

Unavailable

Conrad Electronic

17.5 A

Black

50 pc(s)

2.5 mm²

1.5 mm²

0.14 mm²

Piece(s)

Minimum order quantity: 1

Multiple: 1

Documents & Downloads

Datasheet

Datasheet 2226077 Phoenix Contact 3273790 Grey 10 pc(s)

User & Safety Instructions

User & Safety Instructions 2226077 Phoenix Contact 3273790 Grey 10 pc(s)

Description

Up to 80% time advantage through ready-to-assemble blocks without manual bridging. Time-saving conductor connection through tool-free push-in direct plug technology. Clear wiring through eleven different color variants. Flexible use through rail mounting, direct mounting or sticking. Up to 50% space saving on the mounting rail through cross-mounting.

This text is machine translated.
