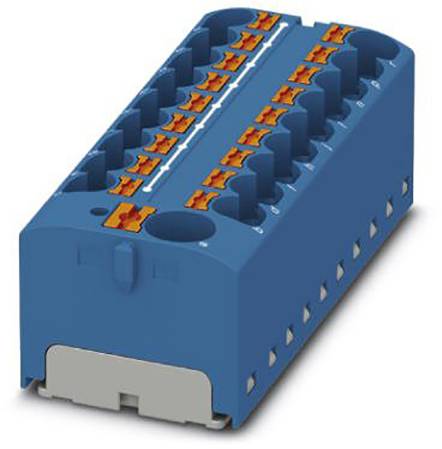

Image similar
Phoenix Contact 3274034 Distribution block 64.8 mm Pull spring Blue 8 pc(s) Piece
Packaging type
Piece
Product type
Distribution block
Connection
Pull spring
Cross section (flexible) (max.)
6 mm²
Cross section (inflexible) (max.)
6 mm²
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
- PTFIX 10/18X4-G BU
Technical specifications
- Packaging type
Piece
- Product type
Distribution block
- Features
+ label
+ test option
+ sleeve
- Connection
Pull spring
- Cross section (flexible) (min.)
0.2 mm²
- Cross section (flexible) (max.)
6 mm²
- Cross section (inflexible) (min.)
0.2 mm²
- Cross section (inflexible) (max.)
6 mm²
- AWG (min.)
24
- AWG max.
10
- Clamp width
64.8 mm
- No. of rows
1
- Number of pins
19
- Factory colour
Blue
- Nominal current
32 A
- Nominal current - rounded value
32 A
- Nominal voltage
800 V
- Min. stripping length
10 mm
- Stripping length (max.)
12 mm
- Manufacturer part #
3274034
- Content
8 pc(s)
- Type
PTFIX 10/18X4-G BU
- Dim
(L x W x H) 28.6 x 64.8 x 21.7 mm
- Width
64.8 mm
- Height
21.7 mm
- Length
28.6 mm
- Flammability rating
V0
- Connector colour
Blue
- Insulation material
PA
- UKCA
yes
