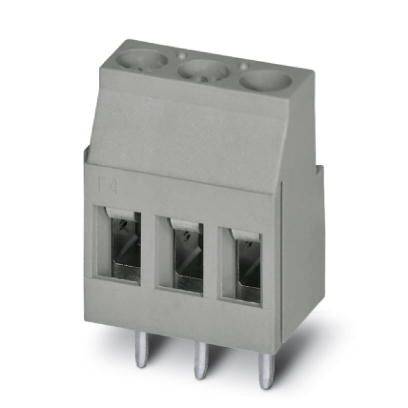

Phoenix Contact 5441142 Print terminal Number of pins 3 White, Green 100 pc(s) Piece
Packaging type
Piece
Product type
Print terminal
CS
5.08 mm
Pins per row
3
Number of pins
3
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
PCB terminal
- Content 100 pc(s)
Technical specifications
- Screw thread: M3
- Insulating material: PA
- Insulating material group: I
- Pin length 3.5 mm
- Rated surge voltage (III/3) 4 kV
- Nominal cross-section 2.5 mm²
- Packaging type
Piece
- Type
BC-508X18- 3 GN
- Product type
Print terminal
- Features
+ extractor sleeve
- CS
5.08 mm
- Pins per row
3
- Number of pins
3
- Stripping length (max.)
7 mm
- Connection
Screws
Print
- Nominal current
24 A
- Nominal current - rounded value
24 A
- Connector orientation
Perpendicular (to the PCB)
- Enclosure material
PA
- Factory colour
White
Green
- Manufacturer part #
5441142
- Content
100 pc(s)
- Nominal voltage
400 V
- Width
15.24 mm
- Height
21.5 mm
- Length
11.2 mm
Documents & Downloads
Datasheet
Datasheet 2226094 Phoenix Contact 5441142 Print terminal Number of pins 3 White, Green 100 pc(s) Piece
Datasheet 2226094 Phoenix Contact 5441142 Print terminal Number of pins 3 White, Green 100 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 2226094 Phoenix Contact 5441142 Print terminal Number of pins 3 White, Green 100 pc(s) Piece
Description
PCB terminal, rated current 24 A, rated voltage 400 V, pitch 5.08 mm, number of poles: 3, connection type: Screw connection with pull sleeve, mounting: Wave soldering, conductor/board connection direction: 0 °, color: White green. The article can be aligned to different pole numbers!
