Phoenix Contact Catan C1 1886438 Controller
EAN:
Part number:
Item no:
Number
Total (€ 1,125.00 / piece)
€ 1,125.00
incl. VAT
Only 1 Piece(s) available
Technical specifications
- Product type
Controller
- Manufacturer part #
1886438
- Type
Catan C1
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3733237 Phoenix Contact Catan C1 1886438 Controller
Description

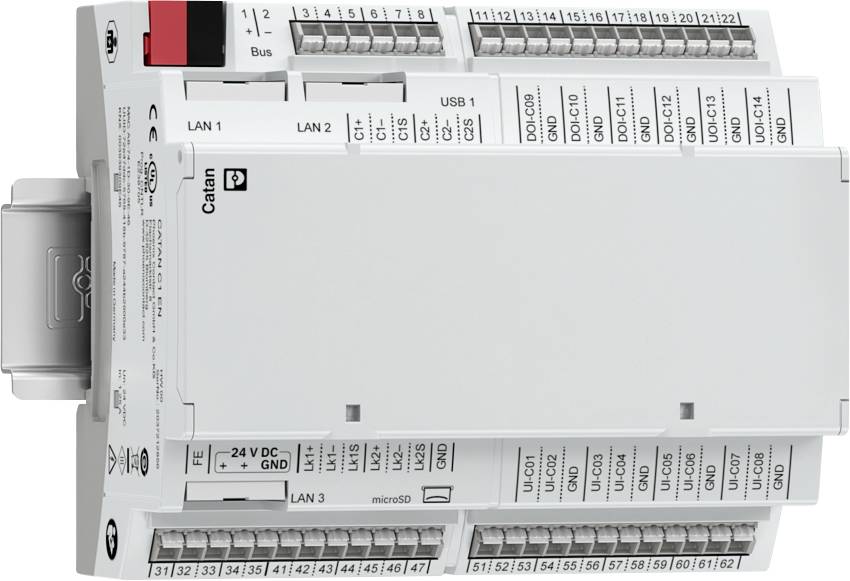

CATAN C1 - Control for building automation based on the open PLCnext Technology Ecosystem.
The CATAN C1 controller is the central component of the Catan product family for building and room automation. The compact REG housing with a width of only 6 TE finds place in any electrical distribution. The highly flexible I/O mix leads to further space and cost savings. Each channel is individually configurable:
Universal inputs are for temperature sensors, 0 V ... 10-V interfaces or suitable as counters. Alternatively outputs can be configured as digital inputs.
The controller is equipped with a Managed Switch (3 x 1 GBit/s). The control system uses PLCnext technology and enables the execution of Apps from PLCnext Store. Application-specific apps make them a flexible platform for Smart-building applications.
This text is machine translated.
The CATAN C1 controller is the central component of the Catan product family for building and room automation. The compact REG housing with a width of only 6 TE finds place in any electrical distribution. The highly flexible I/O mix leads to further space and cost savings. Each channel is individually configurable:
Universal inputs are for temperature sensors, 0 V ... 10-V interfaces or suitable as counters. Alternatively outputs can be configured as digital inputs.
The controller is equipped with a Managed Switch (3 x 1 GBit/s). The control system uses PLCnext technology and enables the execution of Apps from PLCnext Store. Application-specific apps make them a flexible platform for Smart-building applications.
This text is machine translated.
Features
- Managed Ethernet switch with 3 ports for 1 GBit/s.
- 2 USB-C ports for Catan Control Panel and USB peripherals
- 2 Interfaces for Expansion Bus (Single Pair Ethernet)
- 2 serial ports RS-485
- 1 TP interface for room automation
- 8 configurable universal inputs (UI)
- 2 configurable universal outputs (UOI), alternatively configurable as digital inputs
- 4 digital outputs (DOI), alternatively configurable as digital inputs
- Acoustic signalling
- Security-by-Design: Secure Boot, signed firmware, CRA-compliant
