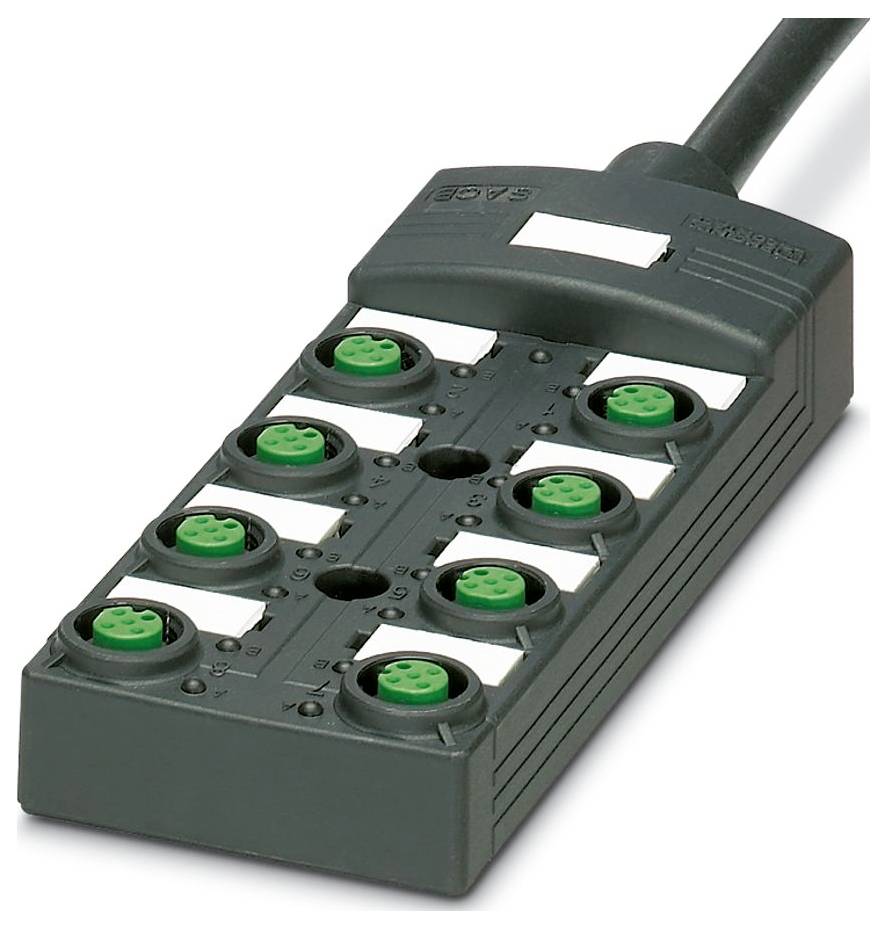

Image similar
Phoenix Contact SACB-8/16-L-15,0PUR SCO P 1097635 Sensor & actuator box M12 splitter + plastic thread 1 pc(s) Piece
Packaging type
Piece
Product type
Sensor & actuator box
No. of signal spaces
8
No. of splitters
8-way
Configuration
Double
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Number of pins: 19
- NOMINAL VOLTAGE 24 V DC
- Width 54 mm
- Height: 23 mm
- Flammability class according to UL 94: V0
- Material: housing: PBT
- Ambient conditions: Environmental conditions
- Protection class IP65;IP67
- Ambient temperature (operation): -25 °C ... 80 °C
- Standards/regulations: IEC 61076-2-101
- Length: 149 mm
- Material contact surface: Gold-plated
- Cable outside diameter 10.50 mm ±0.2 mm
- Note on the application: Unused slots must be closed before commissioning. Suitable locking elements are given under "Accessories".
- Outer sheath, material: PUR
- Material conductor: Plain Cu stranded conductor
- cable length 15 m
- Wire cross-section: 16x 0.5 mm² (signal line);3x 1 mm² (power line)
- Wire connection: Conductor connection
- Mounting instructions: CAUTION: When laying cables, observe the permissible bending radii, as the degree of protection is endangered by excessive bending forces. Catch mechanical loads before the connector, e.g. Through cable ties.
- M12 connector
- Outer sheath, color: Black RAL 9005
- Application: Standard
- Other stability: Good resistance to acids, bases and solvents
- Coding: A
- LED: Yes
- Material contact: Copper alloy
- Test voltage 2000 V
- Number of slots: 8
- Operating voltage maximum Umax 30 V DC
- Rated current total 12 A.
- Current carrying capacity per path max. 2 A.
- Max. Current rating per slot 4 A
- Sensor/actuator type: M12 socket
- Tightening torque slot sensor/actuator cable: 0.4 Nm
- Pin assignment: Connection assignment
- Slot/pole = wire color or connection: 1 4 7 2 8 / 4 6 4 8 2 (A) = WH;1 2 7 4 1-8 / 2 (B) = GYPK;5 / 4 (A) = GN;4 / 4 (B) = RDBU;4 / 4 (A) = YE;3 / 2 (B) = WHGN;2 / 2 (A) = GY;3 / 2 (BA) = 2 (4) (BA) / 5 (2 V = 6 1 (+ 24 V) = BN;1-8 / 3 (0 V) = BU;1-8 / 5 (PE) = GNYE
- Status display available: Yes
- Material thread sleeve:PBT
- Material O-ring seal, NBR
- Material contact carrier: PA
- Tightening torque mounting screw for housing mounting: 0.5 Nm
- Material compound PUR
- Local diagnostics: Supply voltage green LED;status display I/O yellow LED
- Monitored function: Supply voltage
- Optical representation: Green LED
- PUR/PVC BLACK [PUR]: PUR/PVC BLACK [PUR]
- Cable weight: 183.7 kg/km.
- UL AWM STYLE 20549 (80 °C / 300 V)
- Shielded: No.
- Cable type: PUR/PVC black [PUR]
- Conductor construction signal line: 28x 0.15 mm
- AWG signal cable 20
- Conductor construction power supply 56x 0.15 mm
- AWG power supply: 17
- Wire diameter including insulation: 1.5 mm ±0.1 mm (signal line);2.1 mm ±0.1 mm (power line)
- Material wire insulation: PVC
- Single conductor, color: Brown, blue, green/yellow, white, green, yellow, gray, pink, red, black, violet, gray/pink, red/blue, white/green, brown/green, white/yellow, yellow/brown, white/gray, gray/brown
- Wall thickness inner sleeve: ≥ 0.15 mm
- Wall thickness outer sheath: ≥ 0.76 mm
- Complete stranding: Wires stranded in layers
- Nominal voltage 300 V for cable
- Minimum bend radius, fixed 7.5 x D
- Minimum bend radius, flexibly laid: 10 x D
- Minimum bend radius, 79 mm fixed installation
- Minimum bend radius, movable 105 mm
- Dynamic load carrying capacity (bending): Maximum bending cycles: 1500000, bending radius: 10 x D, traverse path: 2 m, travel speed: 2 m/s.
- Non flammable: According to DIN EN 50265
- Oil resistance: According to VDE 0472 Part 803
- Special properties: Silicone-free
- Packaging type
Piece
- Product type
Sensor & actuator box
- No. of signal spaces
8
- Configuration
Double
- Type
SACB-8/16-L-15,0PUR SCO P
- Trunk line
Yes
- No. of splitters
8-way
- Status indicator
LED
- Signal type
PNP
- Connection
M12 socket
- Width
54 mm
- Length
149 mm
IP65
IP67
- Max. power rating per slot
4 A
- Total current (direct supply)
12 A
- Max. temperature
80 °C
- Min. temperature
-25 °C
- Connector cross section (max.)
1 mm²
- Connector cross section (min.)
0.5 mm²
- Connector type (distribution boxes)
M12 socket
- Case material
PBT
- Total no. of pins
5
- Manufacturer part #
1097635
- Content
1 pc(s)
- Cable length
15 m
- Number of pins
5
- Height
23 mm
- Power rating (total)
12 A
- Power rating per I/O
2 A
- Depth
149 mm
- Operating voltage
24 V
- Rated voltage
24 V
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3563851 Phoenix Contact SACB-8/16-L-15,0PUR SCO P 1097635 Sensor & actuator box M12 splitter + plastic thread 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 3563851 Phoenix Contact SACB-8/16-L-15,0PUR SCO P 1097635 Sensor & actuator box M12 splitter + plastic thread 1 pc(s) Piece
Description
Distribution box, application: Standard, connection type: M12-bushing plastic, number of slots: 8, number of pins: 5, coding: A, slot assignment: Double, status display: Yes, PNP; Trunk connection: fixed connection 180°, PUR/PVC, cable length 15 m, shielding: no.
