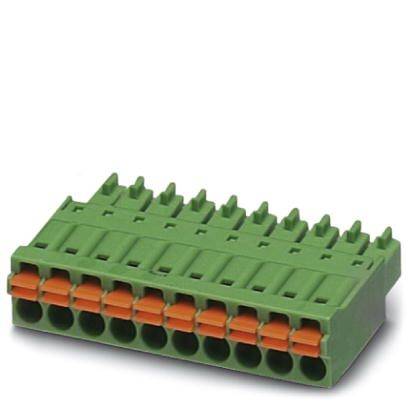

Phoenix Contact Socket housing cable Total number of pins 11 Contact spacing: 3.81 mm 1748066 50 pc(s)
Product type
Socket housing cable
Connector type
Socket
No. of rows
1
CS
3.81 mm
Total number of pins
11
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
PCB connector
- Content: 50 pc(s)
- No. of rows: 1
- Total number of pins: 11
Technical specifications
- Number of connections: 11
- Nominal cross-section 1.5 mm²
- Insulating material group: I
- Rated surge voltage (III/3) 2.5 kV
- Plug system: Mini COMBICON
- Locking: None
- Number of potentials: 11
- Overall height (height without solder pin) 7.75 mm
- Ambient temperature (assembly): -5 °C ... 100 °C
- Insertion force of each pole approx. 8 N.
- Pulling power per pole approx.: 5 N.
- Mating cycles 25
- Product type
Socket housing cable
- Connector type
Socket
- No. of rows
1
- Features
+ push-in spring bracket
- CS
3.81 mm
- Total number of pins
11
- Width
42.35 mm
- Nominal current
8 A
- Nominal current - rounded value
8 A
- Content
50 pc(s)
- AWG max.
16
- AWG (min.)
24
- Stripping length (max.)
10 mm
- Dim
(L x W x H) 21.9 x 42.35 x 7.75 mm
- Connection
Push-in connector
Spring-loaded terminal
- Manufacturer part #
1748066
- Factory colour
Green
- Insulation material
PA
- Contact material
Cu-alloy, tin plated
- Connector contact surface
Tin
- Nominal voltage
160 V
- Height
7.75 mm
- Length
21.9 mm
- max. cross section
1.5 mm²
- Min. cross section
0.2 mm²
- Max. temperature
+100 °C
- Min. temperature
-40 °C
- Type
FMC 1,5/11-ST-3,81
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2209320 Phoenix Contact Socket housing cable Total number of pins 11 Contact spacing: 3.81 mm 1748066 50 pc(s)
Datasheet 2209320 Phoenix Contact Socket housing cable Total number of pins 11 Contact spacing: 3.81 mm 1748066 50 pc(s)
User & Safety Instructions
User & Safety Instructions 2209320 Phoenix Contact Socket housing cable Total number of pins 11 Contact spacing: 3.81 mm 1748066 50 pc(s)
Description
Tool-free, time-saving push-in connection. Defined contact force ensures long-term stable contact. Intuitively operable by color-contrasting actuating push button. Operation and conductor connection from one direction enables integration into the front of the device.
