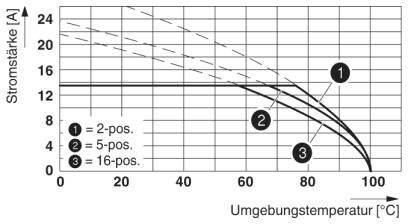

![Graph shows current [A] against ambient temperature [°C] for 2-, 5- and 16-pole connections. Current decreases with rising temperature.](https://asset.conrad.com/media10/isa/160267/c1/-/en/002140976TI03/image.jpg?x=400&y=400&format=jpg&ex=400&ey=400&align=center)
1/4
Image similar
Phoenix Contact Socket housing cable Total number of pins 3 Contact spacing: 5 mm 1725510 250 pc(s)
Product type
Socket housing cable
Connector type
Socket
No. of rows
1
CS
5 mm
Total number of pins
3
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Plug
- Content: 250 pc(s)
- No. of rows: 1
- Total number of pins: 3
Technical specifications
- Number of ports: 6
- Nominal cross-section 2.5 mm²
- Insulating material group: I
- Rated surge voltage (III/3) 4 kV
- PLUG-IN SYSTEM: COMBICON COMPACT PST 1.3
- Locking: None
- Number of potentials: 3
- Overall height (height without solder pin): 16 mm
- Product type
Socket housing cable
- Connector type
Socket
- No. of rows
1
- Features
+ push-in spring bracket
- CS
5 mm
- Pins per row
3
- Total number of pins
3
- Width
16.4 mm
- Nominal current
14 A
- Nominal current - rounded value
14 A
- Content
250 pc(s)
- AWG max.
14
- AWG (min.)
24
- Stripping length (max.)
10 mm

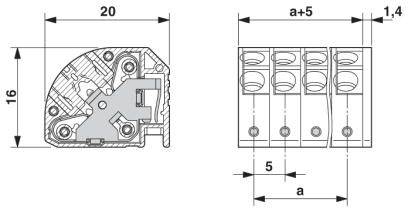

- Dim
(L x W x H) 20 x 16.4 x 16 mm
- Connection
Push-in connector
Spring-loaded terminal
- Manufacturer part #
1725510
- Factory colour
Green
- Insulation material
PA
- Contact material
Cu-alloy, tin plated
- Connector contact surface
Tin
- Nominal voltage
400 V
- Height
16 mm
- Length
20 mm
- max. cross section
2.5 mm²
- Min. cross section
0.2 mm²
- Type
PTDA 2,5/ 3-PH-5,0
- Series
PTDA
- Cross section (flexible) (max.)
2.5 mm²
- Cross section (flexible) (min.)
0.2 mm²
- Cross section (inflexible) (max.)
2.5 mm²
- Cross section (inflexible) (min.)
0.2 mm²
- Number of pins
3
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2140976 Phoenix Contact Socket housing cable Total number of pins 3 Contact spacing: 5 mm 1725510 250 pc(s)
User & Safety Instructions
User & Safety Instructions 2140976 Phoenix Contact Socket housing cable Total number of pins 3 Contact spacing: 5 mm 1725510 250 pc(s)
Description
Tool-free, time-saving push-in connection. Defined contact force ensures long-term stable contact. Simple looping of potentials - ideal for BUS applications. Quick and convenient testing through integrated testing possibility. Rounded design for individual device design.
